RB Crank Trigger Kit

Video Link: https://www.instagram.com/reel/CMu4MRBnIVU/?igshid=mu9tdv0orngw

It has been proven over and over again that Nissan motors with optical crank angle sensor mounted on the camshaft (RB, CA, VG, SR etc.) are notorious for ignition timing drift especially at high load, high power, high rpm and even more pronounced on RB30DET conversions. This is often caused by a combination of timing belt stretch, belt harmonics and worn out OEM CAS unit. Just ask any reputable Nissan tuner!

5-0 Ignite is proud to release our crank trigger kit for RB twin cam application which gives unparalleled accuracy of the crank shaft position against any other cam-only based system on the market. Our kit features;

!  It is STRONGLY recommended to power up the sensors via regulated power supply such as your ECU's 12V or 8V output.

!  Please allow 2 business days dispatch turn-around for orders with supplied plug and play wiring harness

Clean Slate ‘OEM’ Look CNC Machined Billet Aluminium 6061 Enclosed Cam Sensor Cover with Dress Up Washers

24 Plus 1 (24+1) Trigger Setup Compatible with Haltech Platinum Pro and Most Modern/Capable Aftermarket ECU

Genuine ZF (Cherry) Hall Effect Sensors for Both Crank and Cam Home

Integrated Trigger Teeth on Supplied Crank Timing Sprocket, Compatible with OEM and Most Aftermarket Balancer

5-0 Ignite Original Unique Design of Tapered Back Crank Trigger Teeth for Better Alignment to the Sensor and Crank Pulley Clearance Compared to Competitors!

Jacking Bolt Holes on the Crank Timing Sprocket for Ease of Future Removal

Design of the Cam Sensor Cover Allows +/- 3mm of Cam Pulley Thickness Variation Whilst Still Having the Key Within the Sensor Range

CNC Machined Billet Aluminium 6061 Crank Sensor Mount.

CNC Machined Billet Steel Crank Trigger Wheel and Cam Home Key, Zinc Plated For Corossion Resistance.

Wiring Connectors Supplied to Plug into OEM CAS Connector and Hall Effect Sensor (including replacement CAS Plug)

All Installation Fasteners Supplied

Full Instructions Supplied (refer to 'Installation Manual' tab above). Professional Installation is Highly Recommended.



Benefits includes tuner’s confidence in maximising ignition timing whilst keeping consistent safety margin for your high-powered RB build. Suitable for RB20 RB25 RB26 and RB30DET with twin cam heads. A MUST for all valued RB builds!



RB20 RB25 RB26 RB30 | RB Cam and Crank Trigger | RB Crank Trigger Upgrade | Skyline Crank Trigger Kit | R32 R33 R34 | RB CAS Upgrade | RB Crank Trigger Kit | RB20 Crank Trigger Kit | RB25 Crank Trigger Kit | RB26 Crank Trigger Kit | RB Cam Trigger Kit | RB20 Cam Trigger Kit | RB25 Cam Trigger Kit | RB26 Cam Trigger Kit

(50IGNRBTRIG)

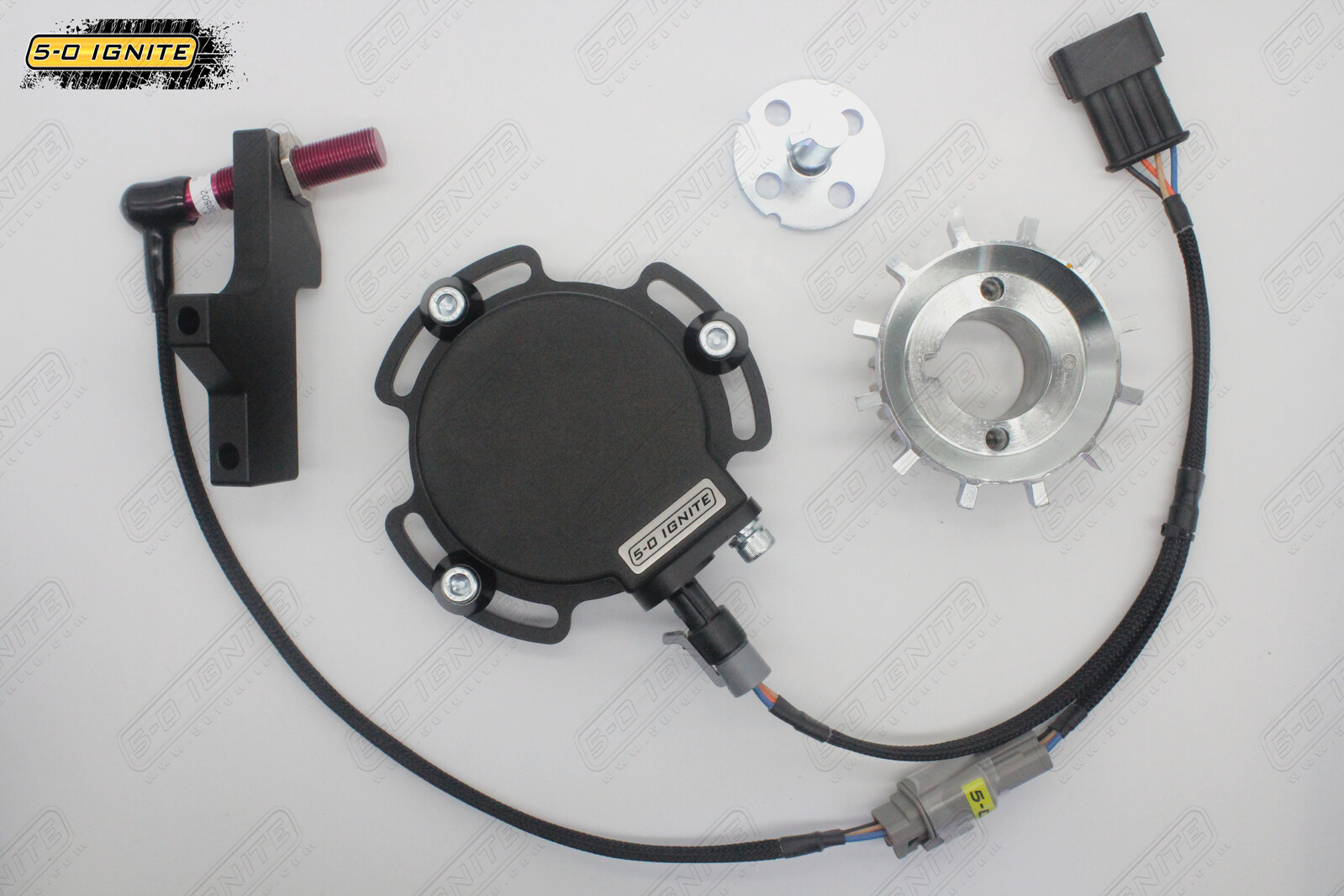

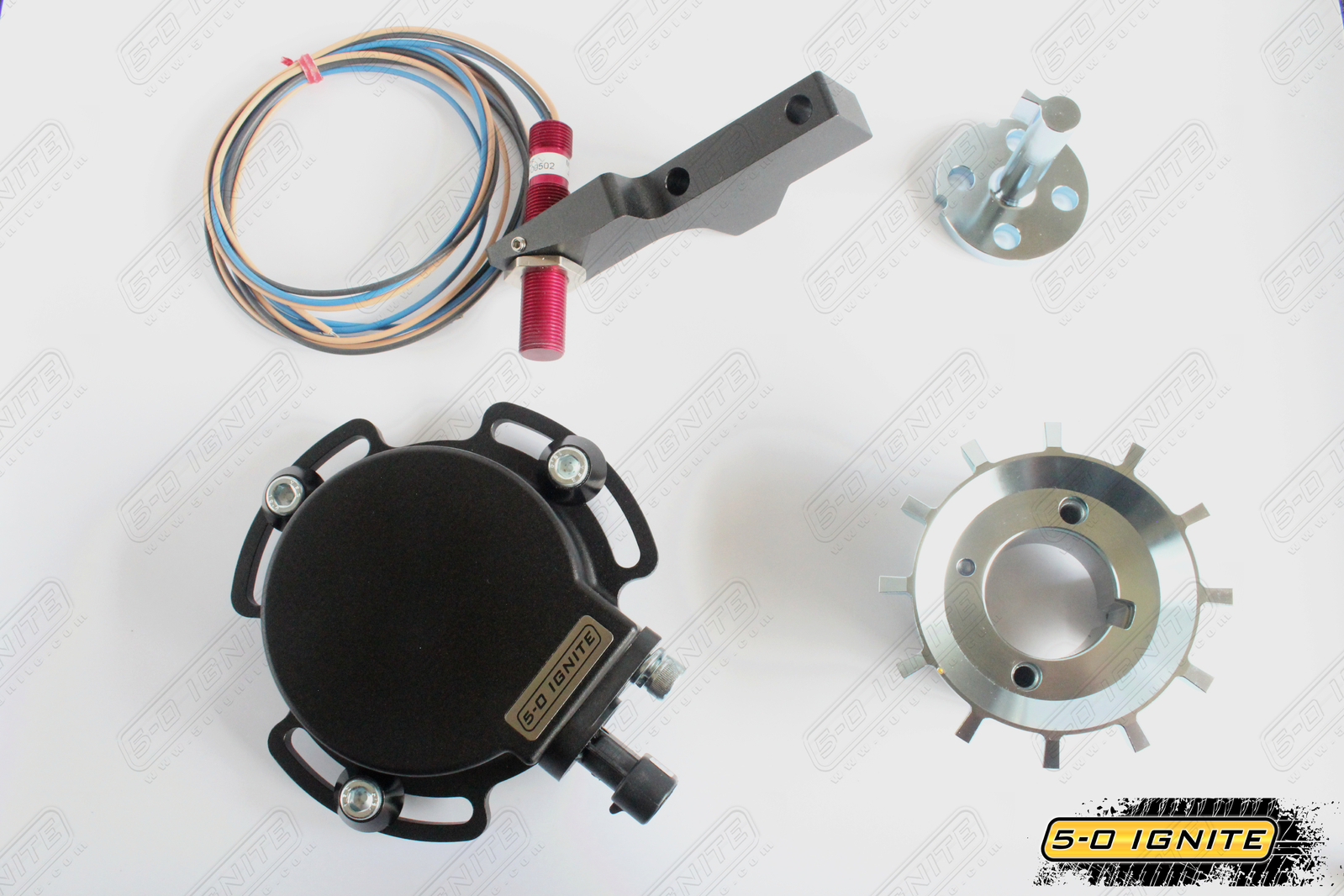

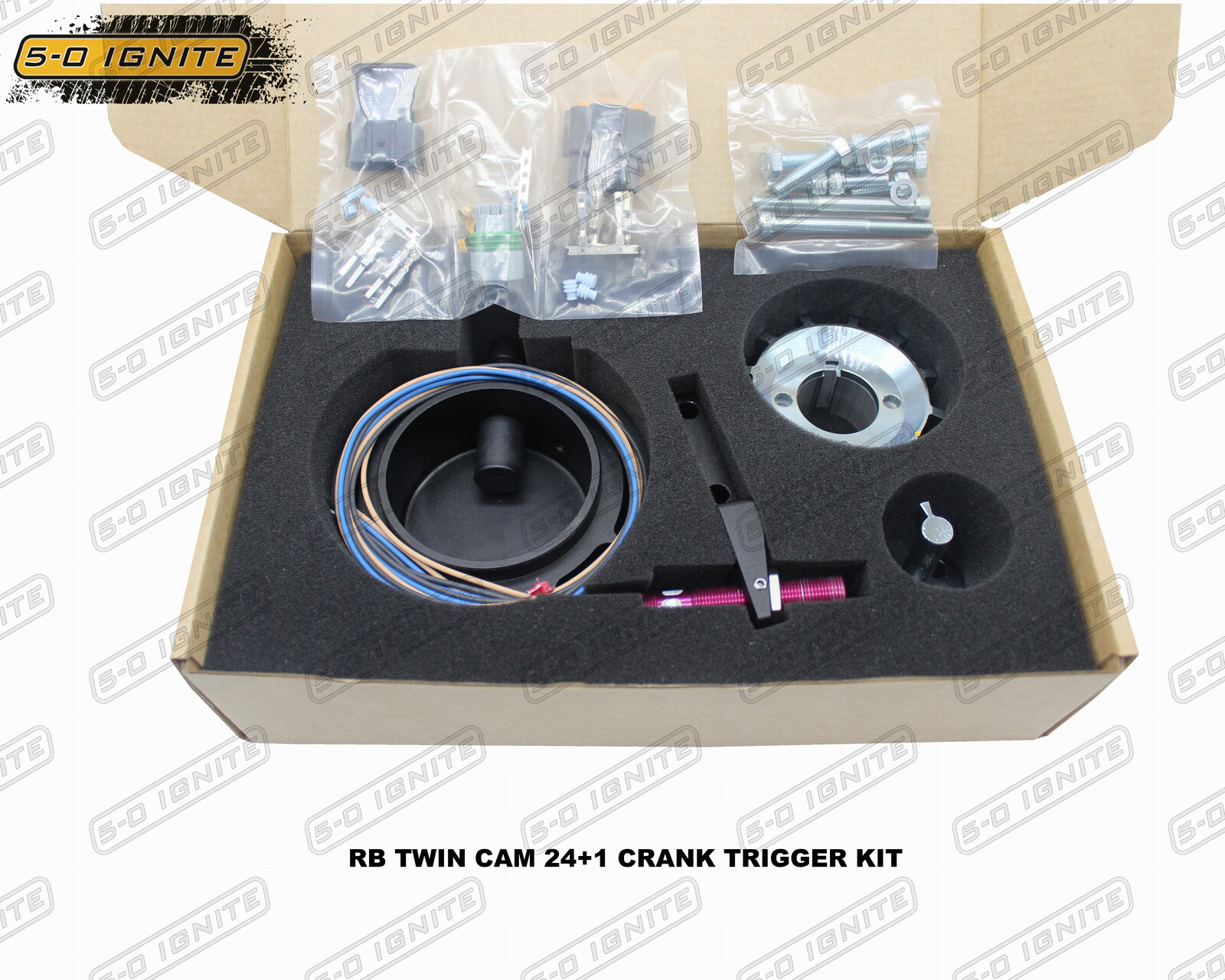

Included in the kit;

  • 1x Crank sprocket with integrated 12 tooth trigger wheel
  • 1x Cam angle sensor housing
  • 1x Cam ‘home’ key

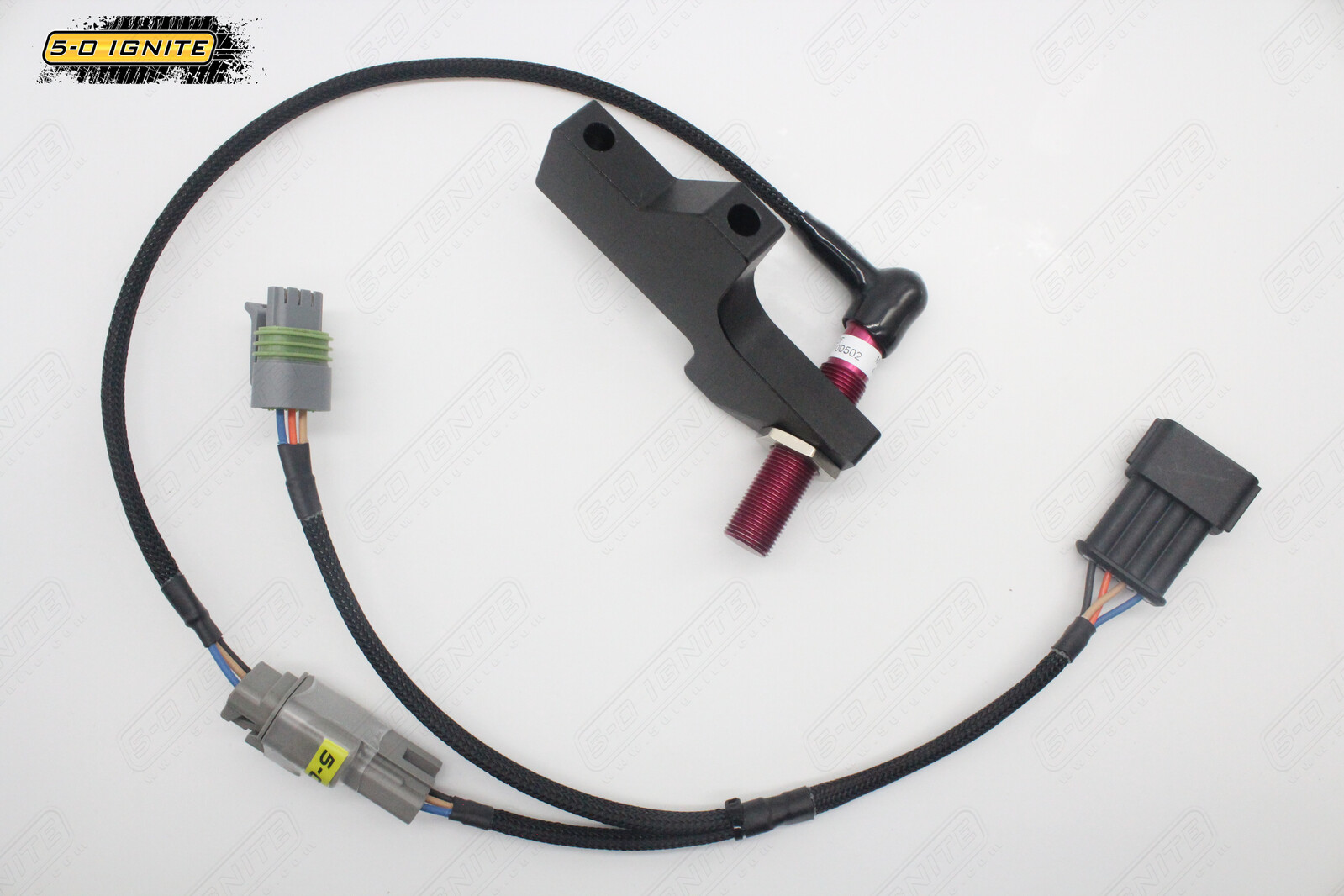

  • 1x Crank angle sensor mount
  • 1x Cam angle sensor (ZF/Cherry)
  • 1x Crank angle sensor (ZF/Cherry)
  • 4x M7x1 grade 8.8 bolt for cam key
  • 4x M6x1 socket head cap ‘short’ bolts for cam angle sensor housing (one installed)
  • 3x M6 aluminium washers for cam angle sensor housing
  • 2x M6x1 socket head cap ‘long’ bolts for crank angle sensor mount
  • 1x OEM CAS female connector replacement with terminals and seals
  • 1x 4 pin male connector with terminals and seals
  • 1x 3 pin female connector for cam sensor with terminals and seals
  • 4x Barrel splice crimps
  • 2x 2.4k OHM resistors

Slight modification to the oil pump housing is required for sensor clearance.

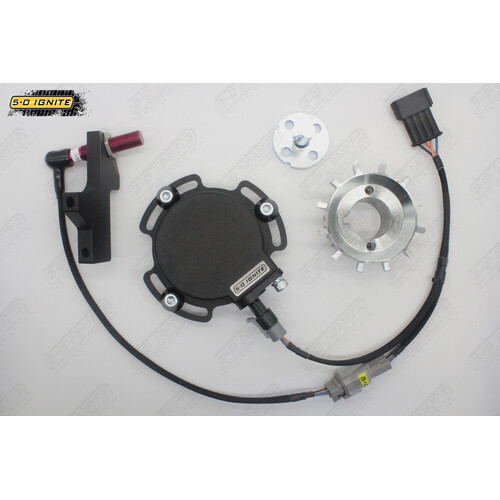

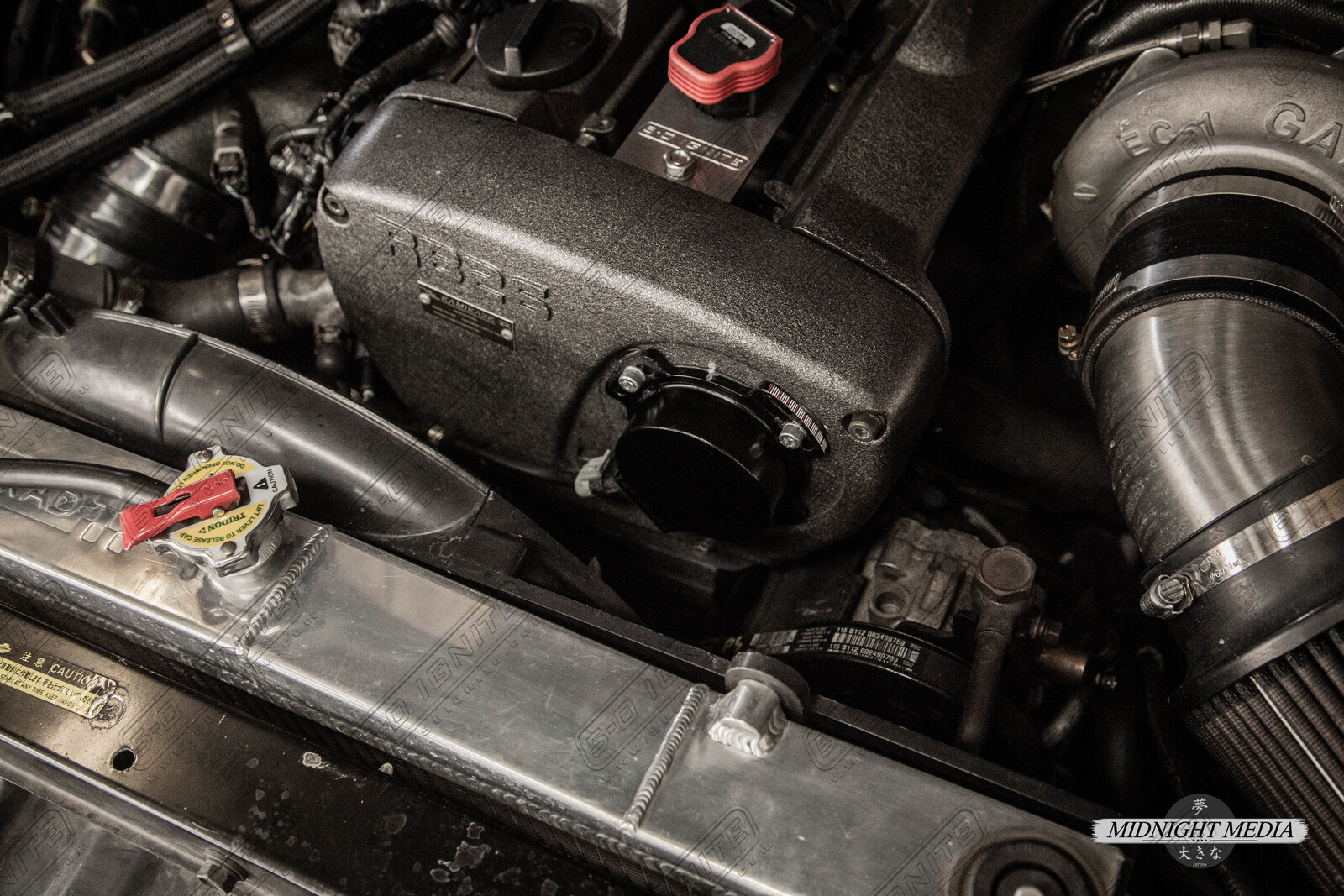

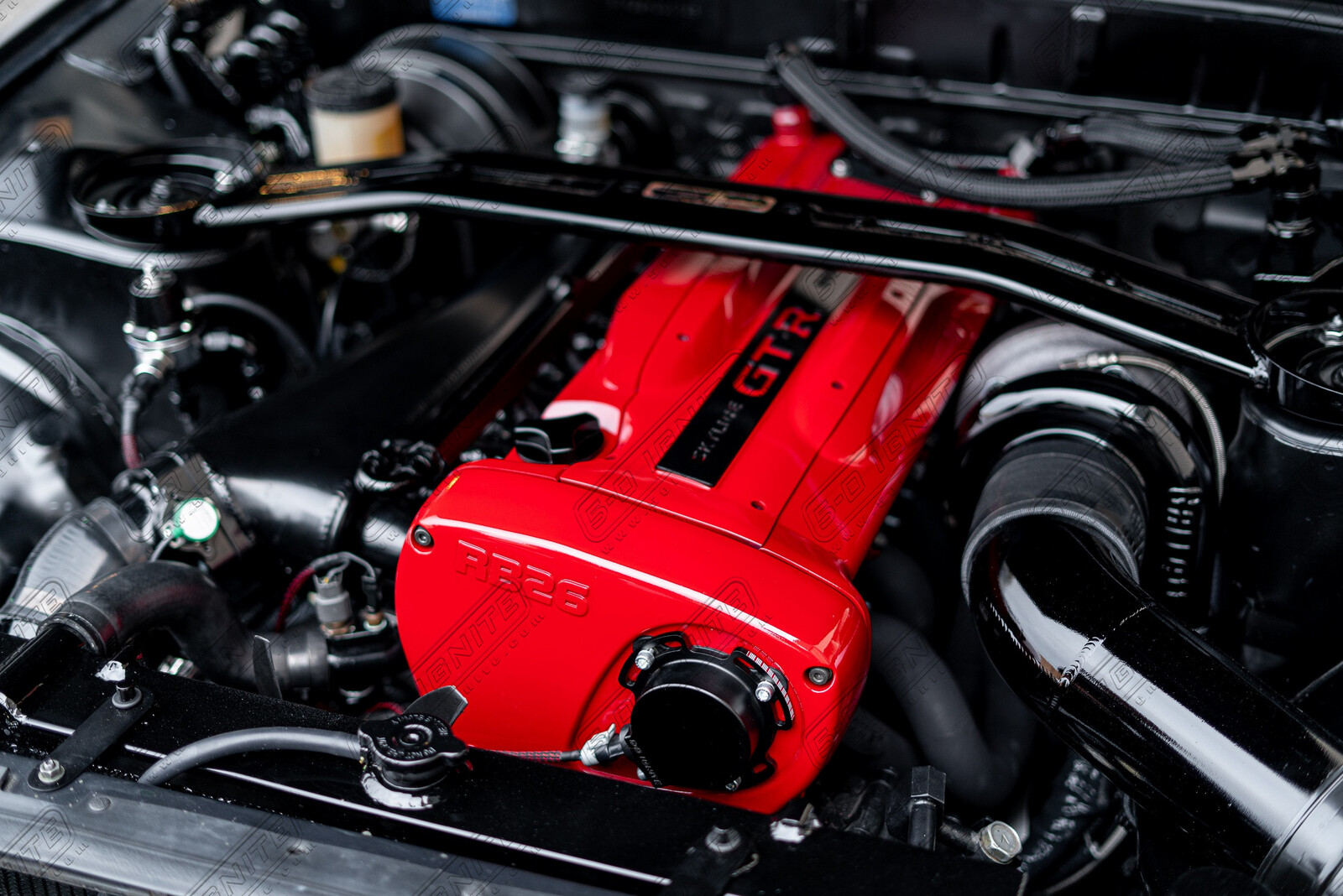

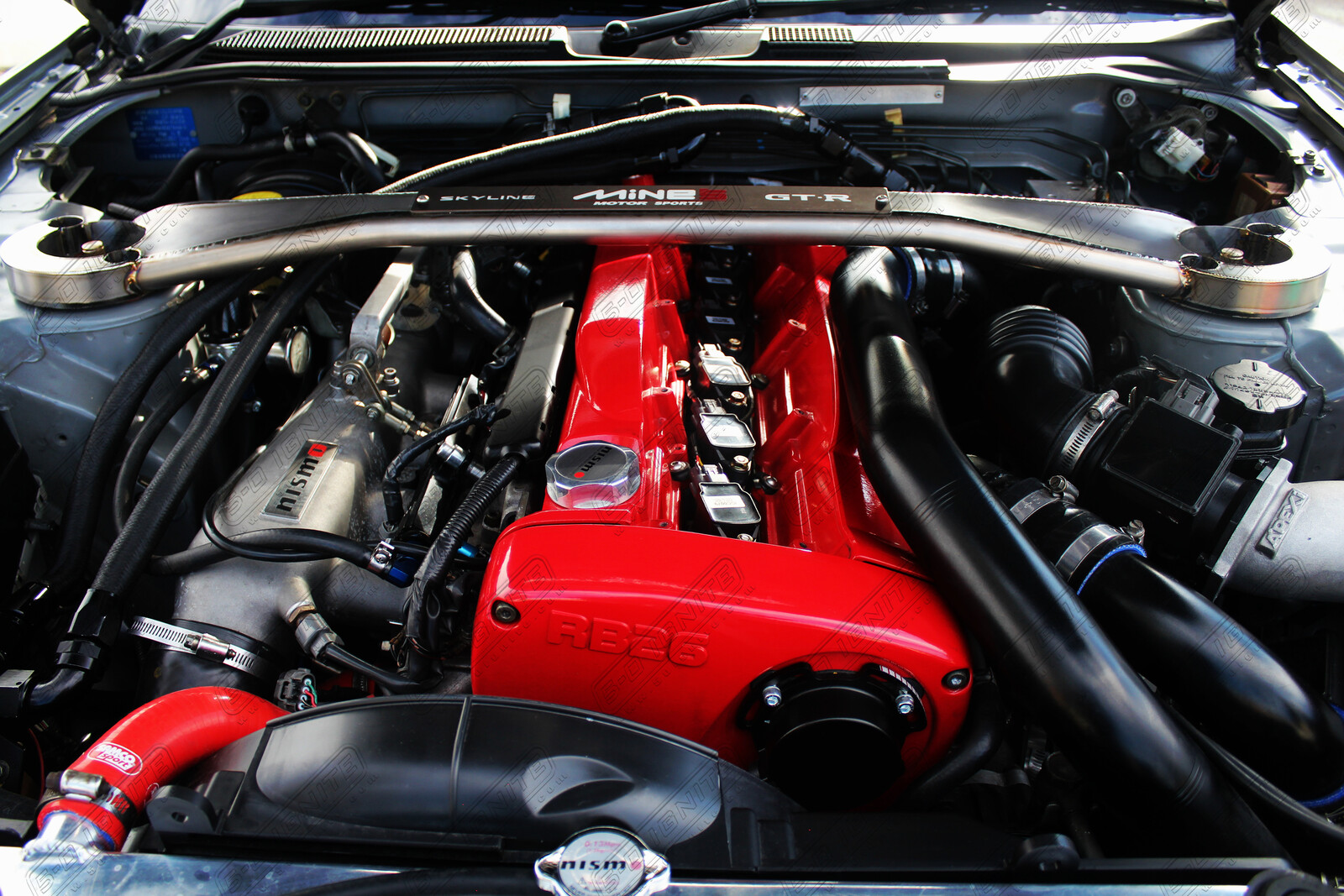

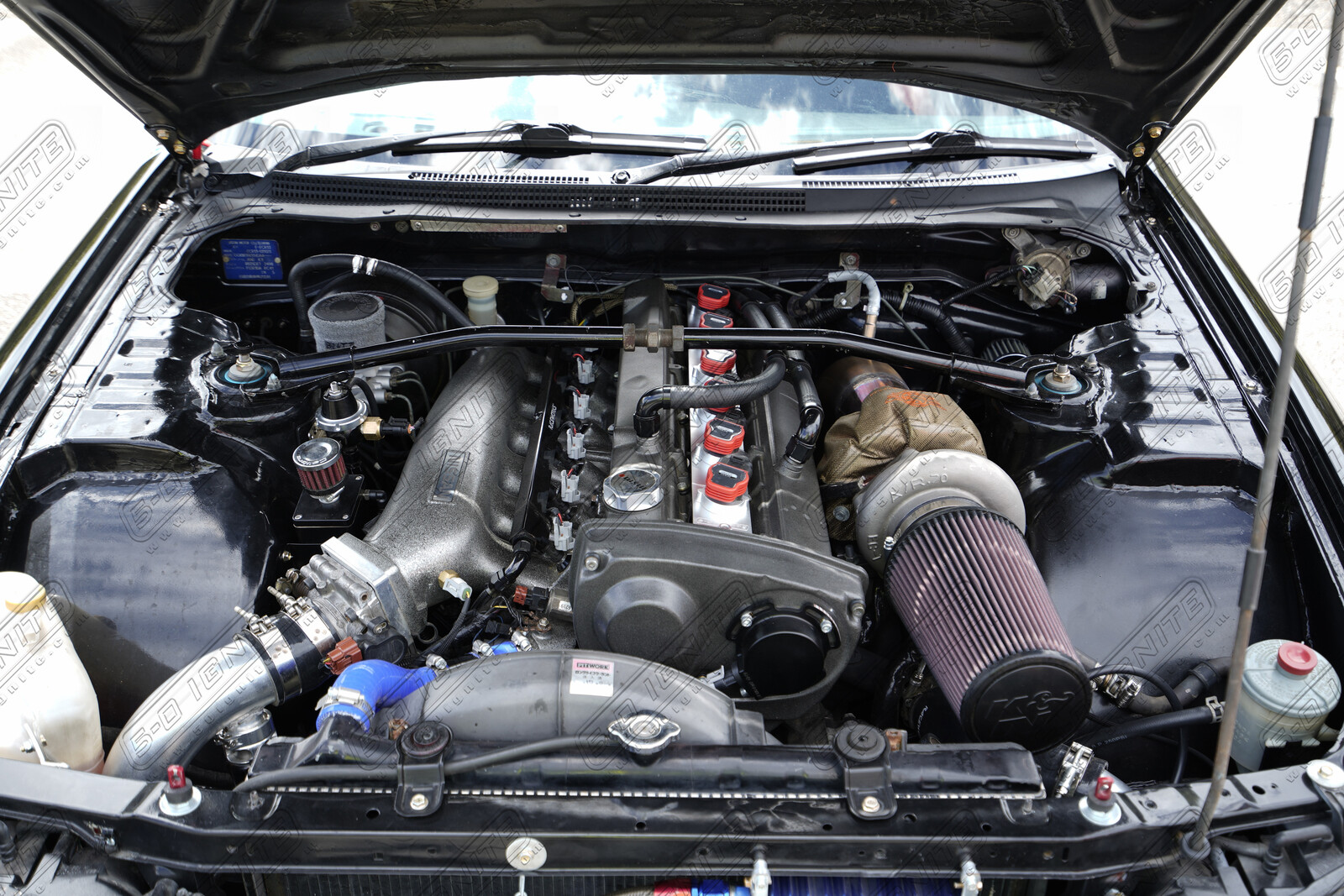

NOTICE: The individual product photo above shows the latest 'facelift' look on the cam sensor housing with the plated brand logo. We currently still have the original look in stock (refer to the engine bay pics) with the high temp brand decal. There are no other changes other than the branding. We will remain to ship out the original look until stock is depleted. Thank you for your understanding.

RB Crank Trigger Kit

Video Link: https://www.instagram.com/reel/CMu4MRBnIVU/?igshid=mu9tdv0orngw

Unless you haven't heard or experienced, Nissan motors with optical crank angle sensor mounted on the camshaft (RB, VG, SR etc.) are notorious for ignition timing drift especially at high load, high power, high rpm and even more pronounced on RB30DET conversions. This is often caused by a combination of timing belt stretch, belt harmonics and worn out OEM CAS unit. Just ask your reputable Nissan tuner!



5-0 Ignite is proud to release our crank trigger kit for RB twin cam application which gives unparalleled accuracy of the crank shaft position against any other cam-only based system on the market. Our kit features;



!  It is STRONGLY recommended to power up the sensors via regulated power supply such as your ECU's 12V or 8V output.

Clean Slate ‘OEM’ Look CNC Machined Billet Aluminium 6061 Enclosed Cam Sensor Cover

24 Plus 1 (24+1) Trigger Setup Compatible with Haltech Platinum Pro and Most Modern/Capable Aftermarket ECU

Genuine ZF (Cherry) Hall Effect Sensors for Both Crank and Cam Home

Integrated Trigger Teeth on Supplied Crank Timing Sprocket, Compatible with OEM and Most Aftermarket Balancer

5-0 Ignite Original Unique Design of Tapered Back Crank Trigger Teeth for Better Alignment to the Sensor and Crank Pulley Clearance Compared to Competitors!

Jacking Bolt Holes on the Crank Timing Sprocket for Ease of Future Removal

Design of the Cam Sensor Cover Allows +/- 3mm of Cam Pulley Thickness Variation Whilst Still Having the Key Within the Sensor Range

CNC Machined Billet Aluminium 6061 Crank Sensor Mount.

CNC Machined Billet Steel Crank Trigger Wheel and Cam Home Key, Zinc Plated For Corossion Resistance.

Wiring Connectors Supplied to Plug into OEM CAS Connector and Hall Effect Sensor (including replacement CAS Plug)

All Installation Fasteners Supplied

Full Instructions Supplied (refer to 'Installation Manual' tab above). Professional Installation is Highly Recommended.



Benefits includes tuner’s confidence in maximising ignition timing whilst keeping consistent safety margin for your high-powered RB build. Suitable for RB20 RB25 RB26 and RB30DET with twin cam heads. Suitabled for all valued RB builds!



RB20 RB25 RB26 | Cam and Crank Trigger | Crank Trigger Upgrade | Crank Trigger Kit | R32 R33 R34 | RB CAS Upgrade

SKU 50IGNRBTRIG
Brand 5-0 Ignite
Shipping Weight 1.0600kg
Shipping Width 0.280m
Shipping Height 0.080m
Shipping Length 0.180m
Shipping Cubic 0.004032000m3
Unit Of Measure ea

Included in the kit;

  • 1x Crank sprocket with integrated 12 tooth trigger wheel
  • 1x Cam angle sensor housing
  • 1x Cam ‘home’ key
  • 1x Crank angle sensor mount
  • 1x Cam angle sensor (ZF/Cherry)
  • 1x Crank angle sensor (ZF/Cherry)
  • 4x M7x1 grade 8.8 bolt for cam key
  • 4x M6x1 socket head cap ‘short’ bolts for cam angle sensor housing (one installed)
  • 3x M6 aluminium washers for cam angle sensor housing
  • 2x M6x1 socket head cap ‘long’ bolts for crank angle sensor mount
  • 1x OEM CAS female connector replacement with terminals and seals
  • 1x 4 pin male connector with terminals and seals
  • 1x 3 pin female connector for cam sensor with terminals and seals
  • 4x Barrel splice crimps
  • 2x 2.4k OHM resistors

Slight modification to the oil pump housing is required for sensor clearance.
