Nissan RB26 Billet Front Timing Cover To Suit RB25 VCT


Have you upgraded the cam covers on your RB25 to the sweet looking RB26? Are you keeping the VCT? We have a solution for you!

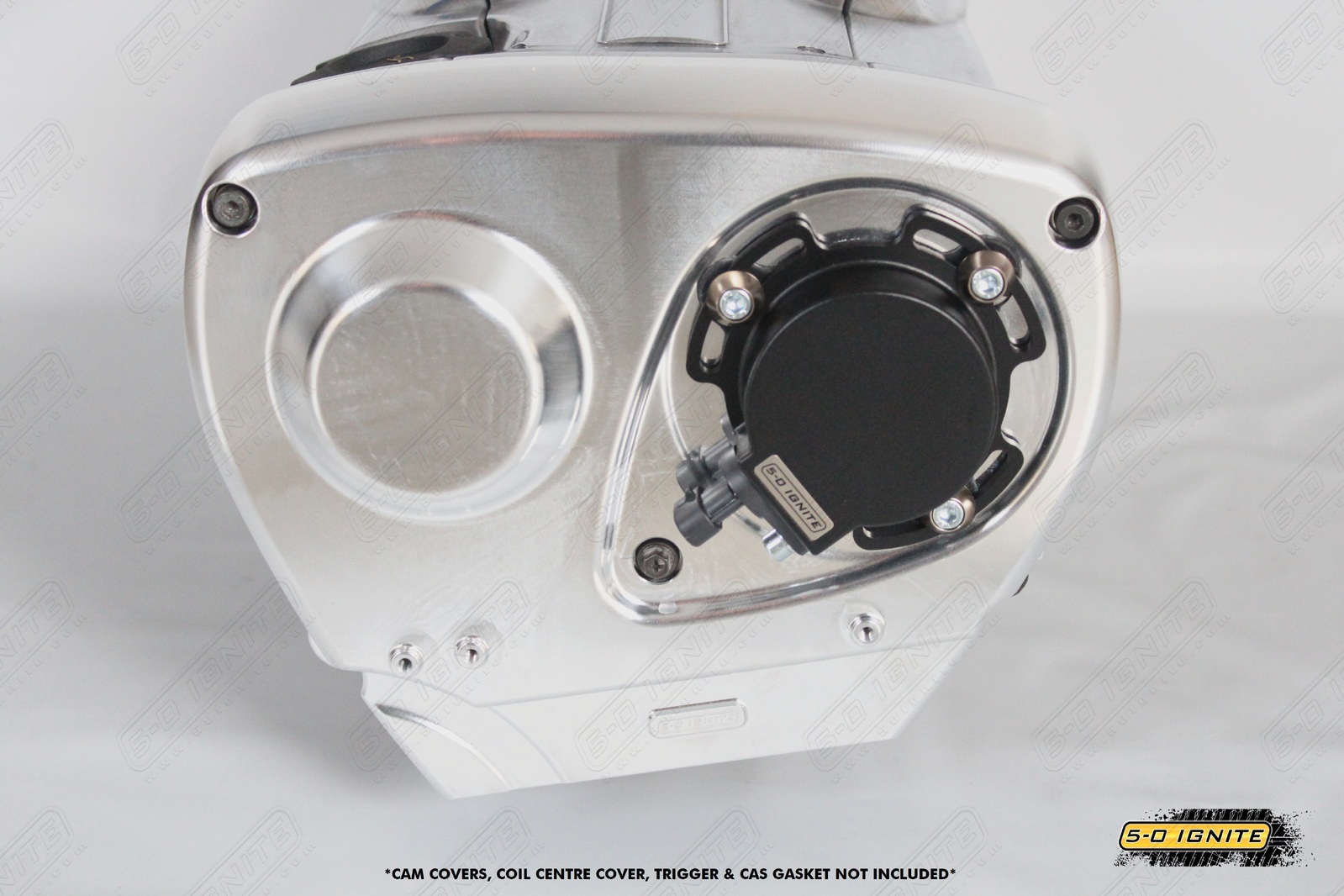

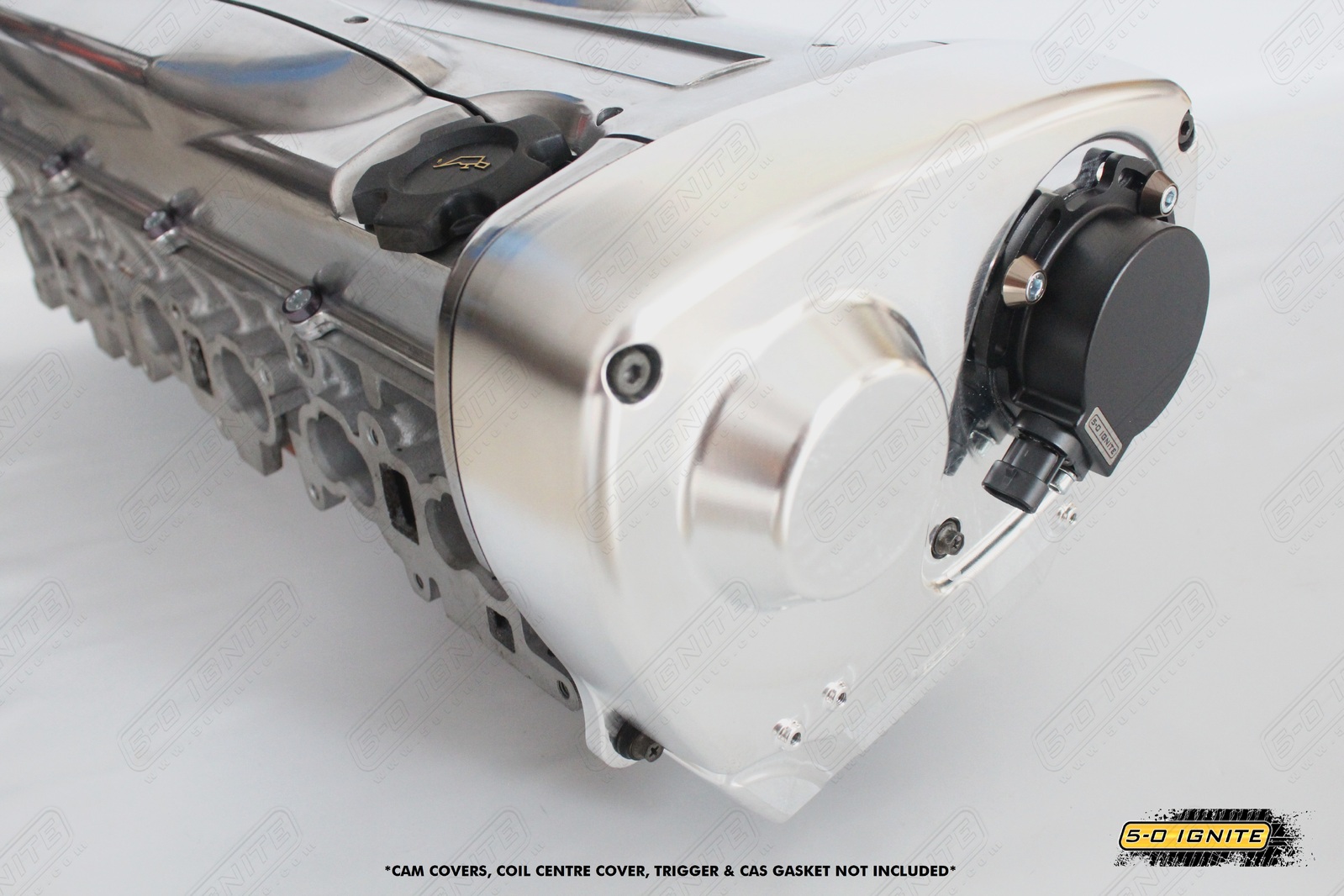

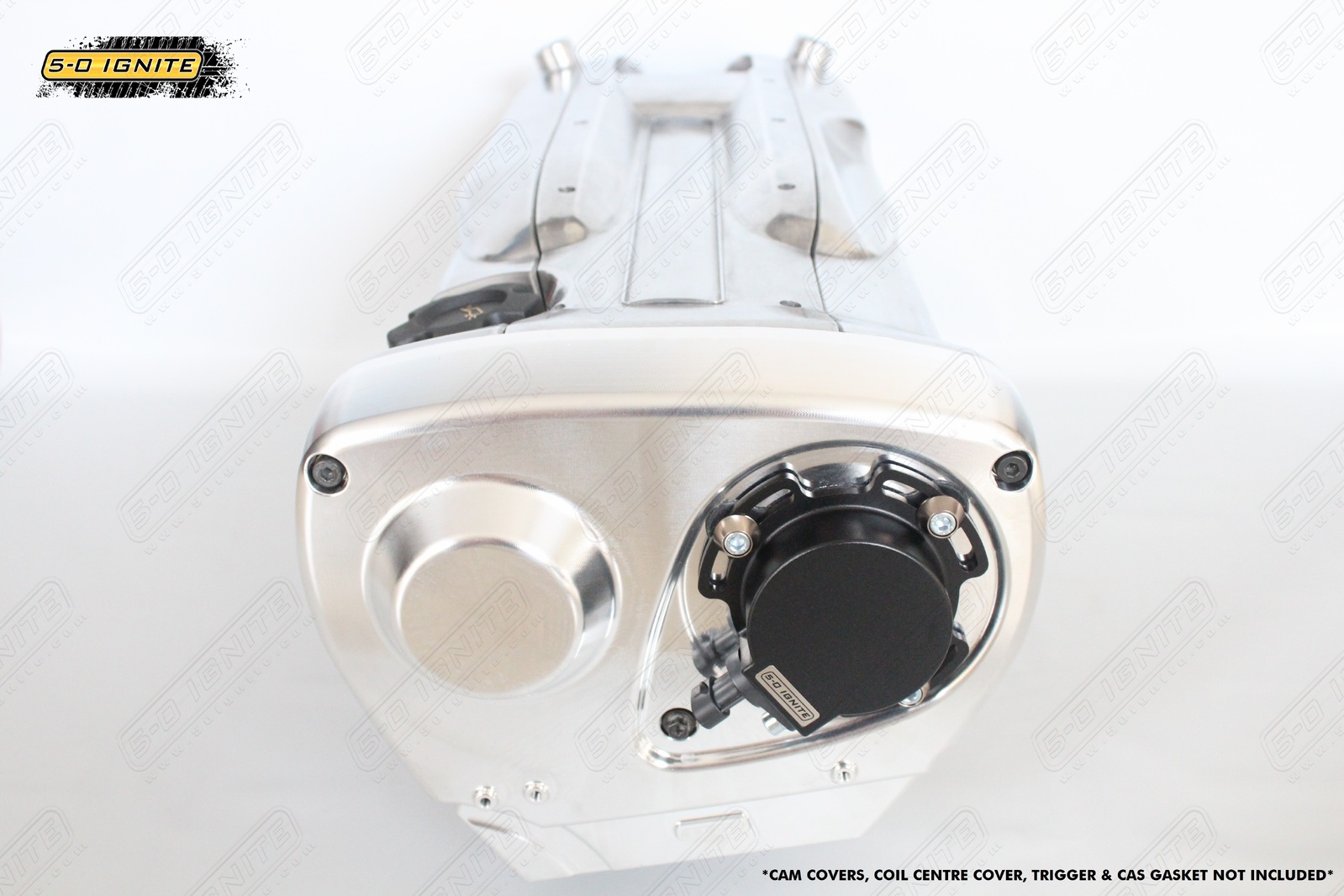

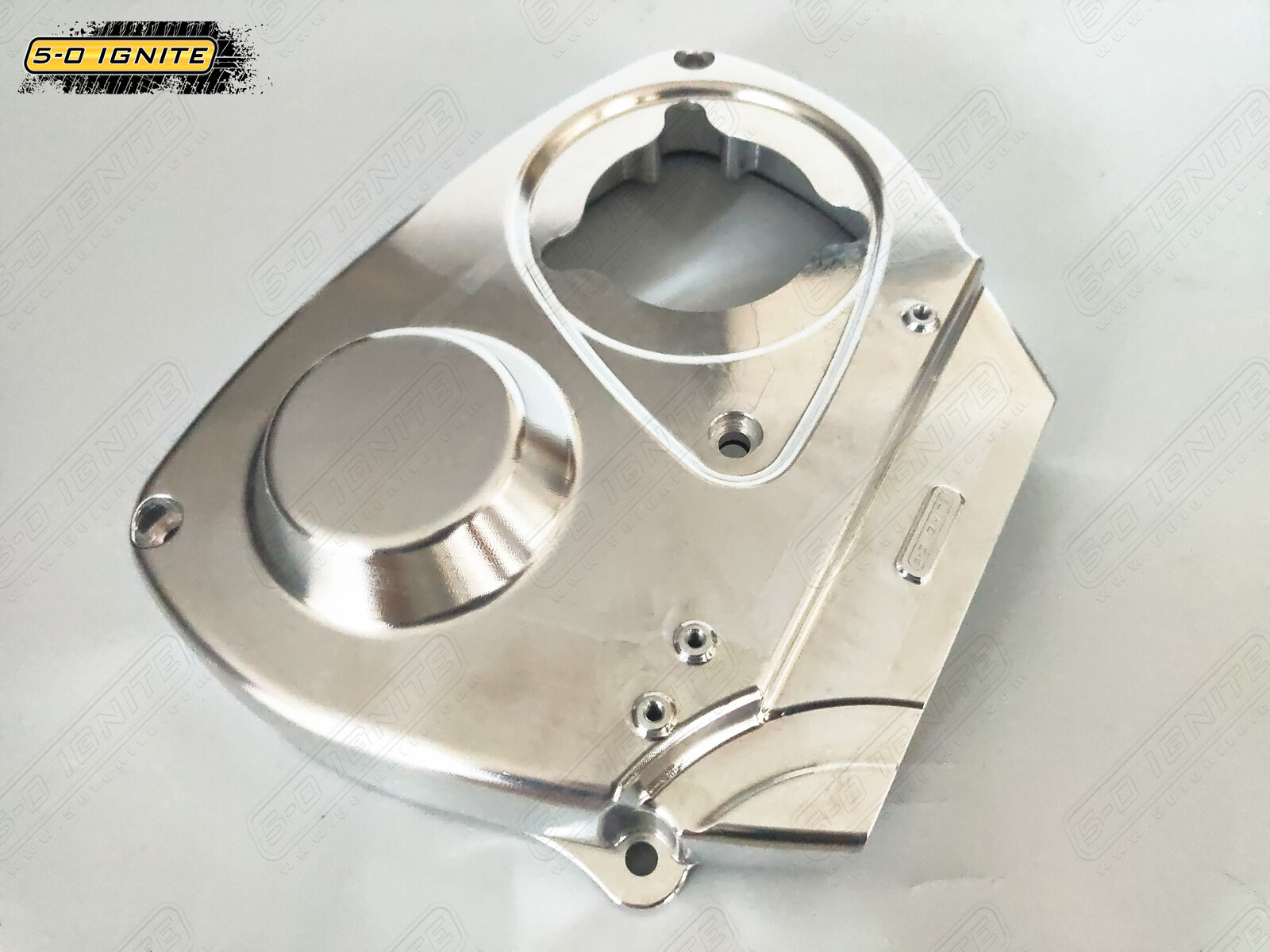

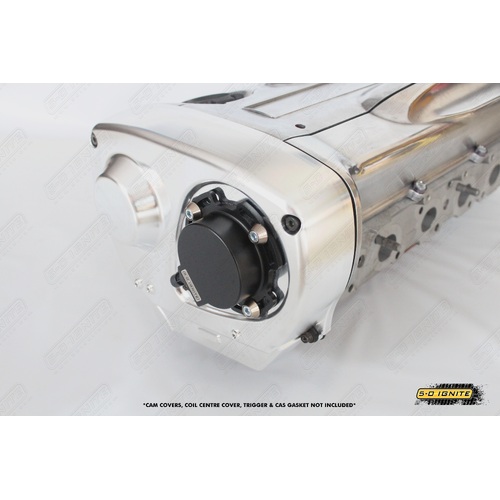

5-0 Ignite billet RB26 front timing cover to suit RB25 head with VCT. No more hacking the precious OEM front RB26 front timing cover, spending hours welding and grinding to make it perfect.

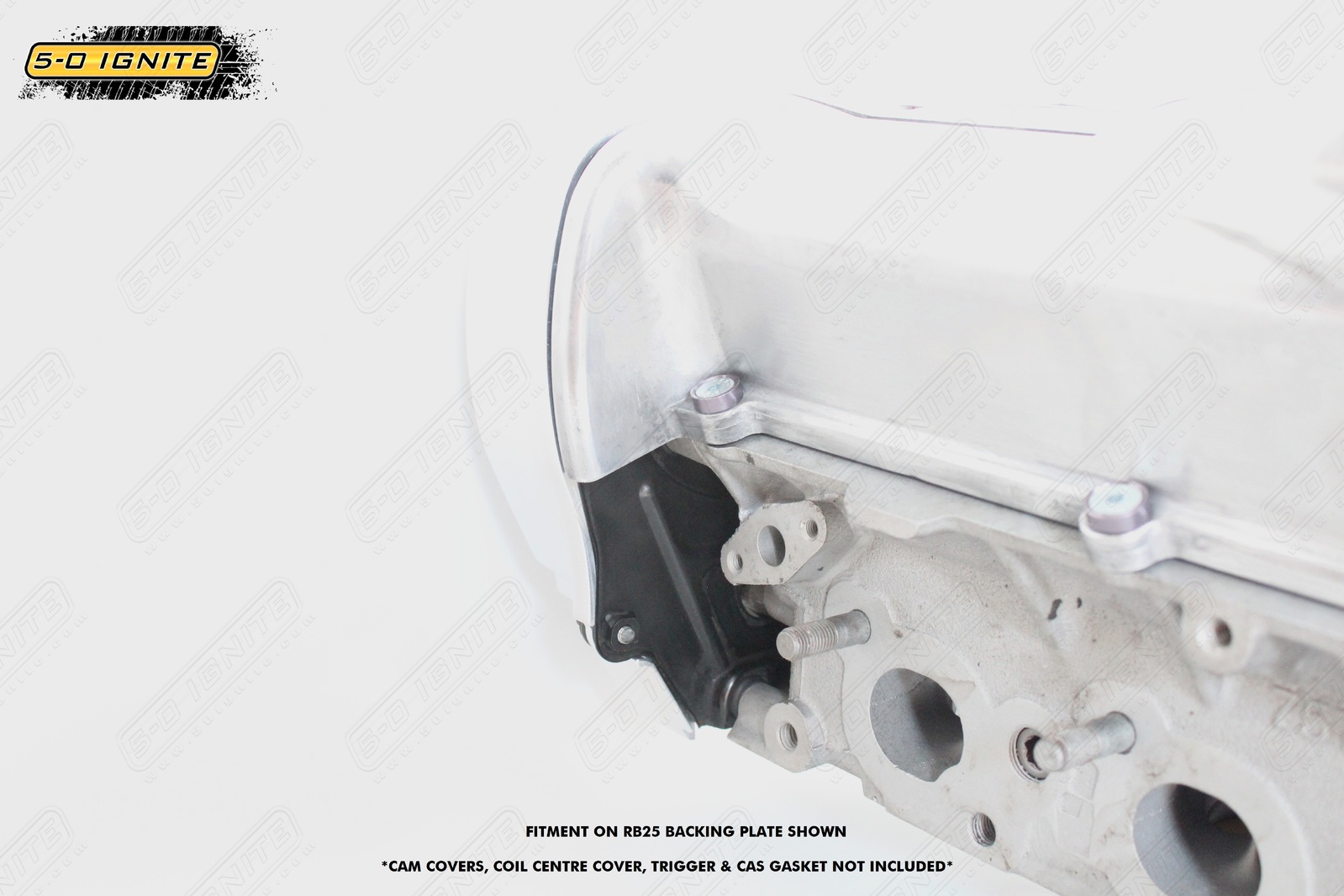

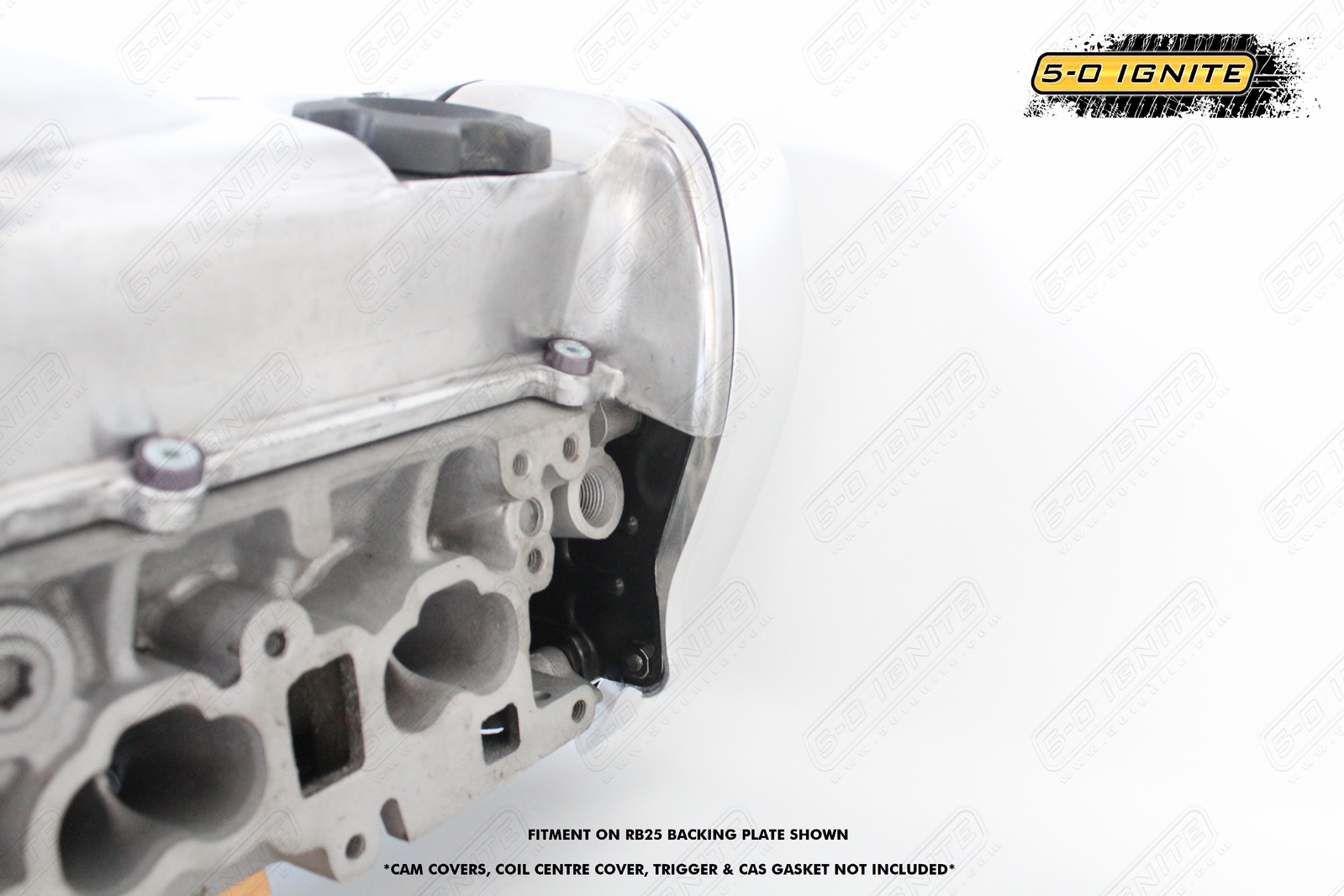

Custom back profile to suit your existing RB25 timing backing plate with minor trimming so you don't have to purchase RB26 timing backing plate. RB26 timing backing plate mounting holes are also mismatched to the RB25 head.

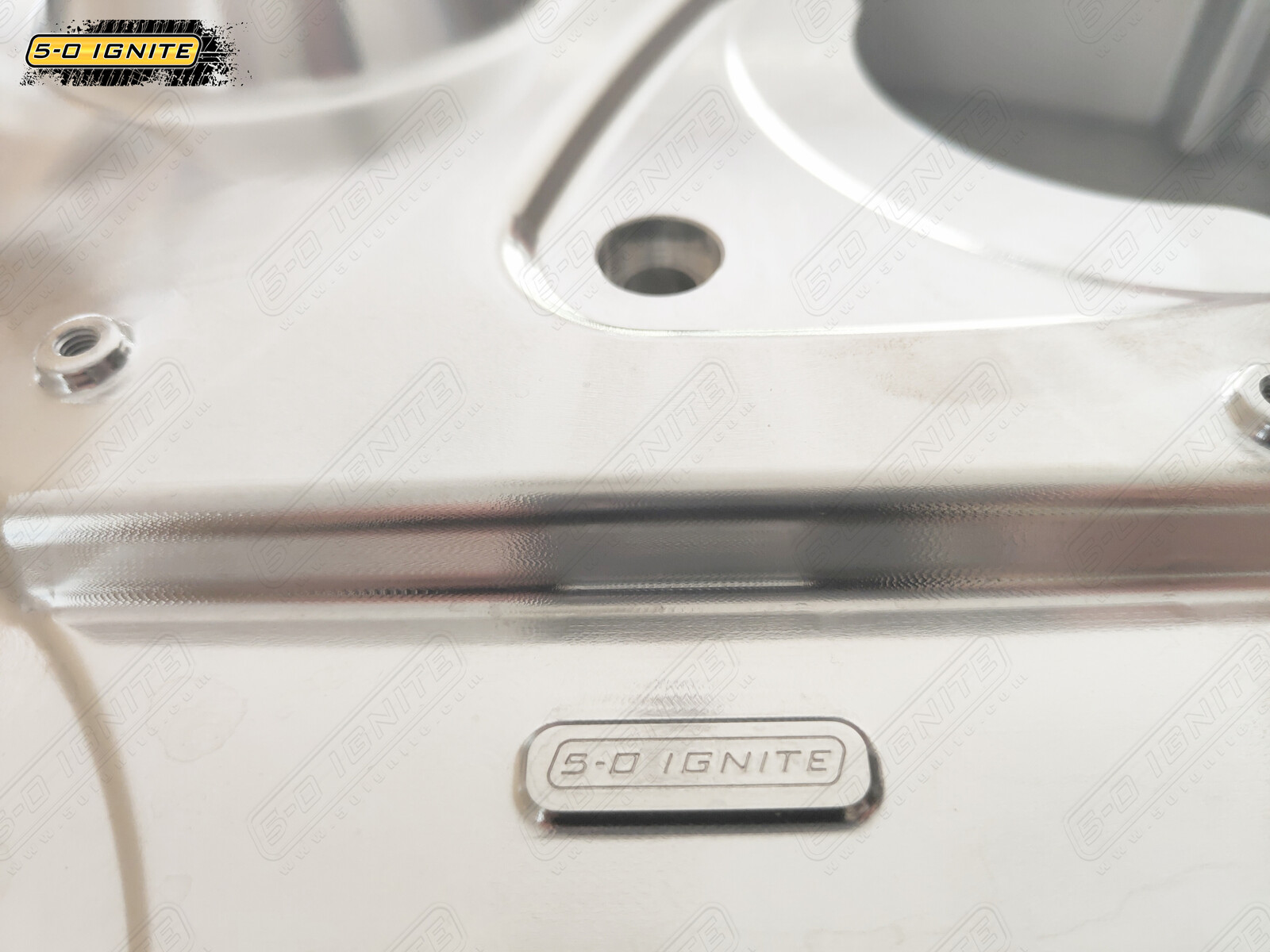

CNC Machined from billet aluminium 6061

External geometries are matched to the OEM RB26 cover via complex 3D scanning and CAD to give you that OEM seamless look.

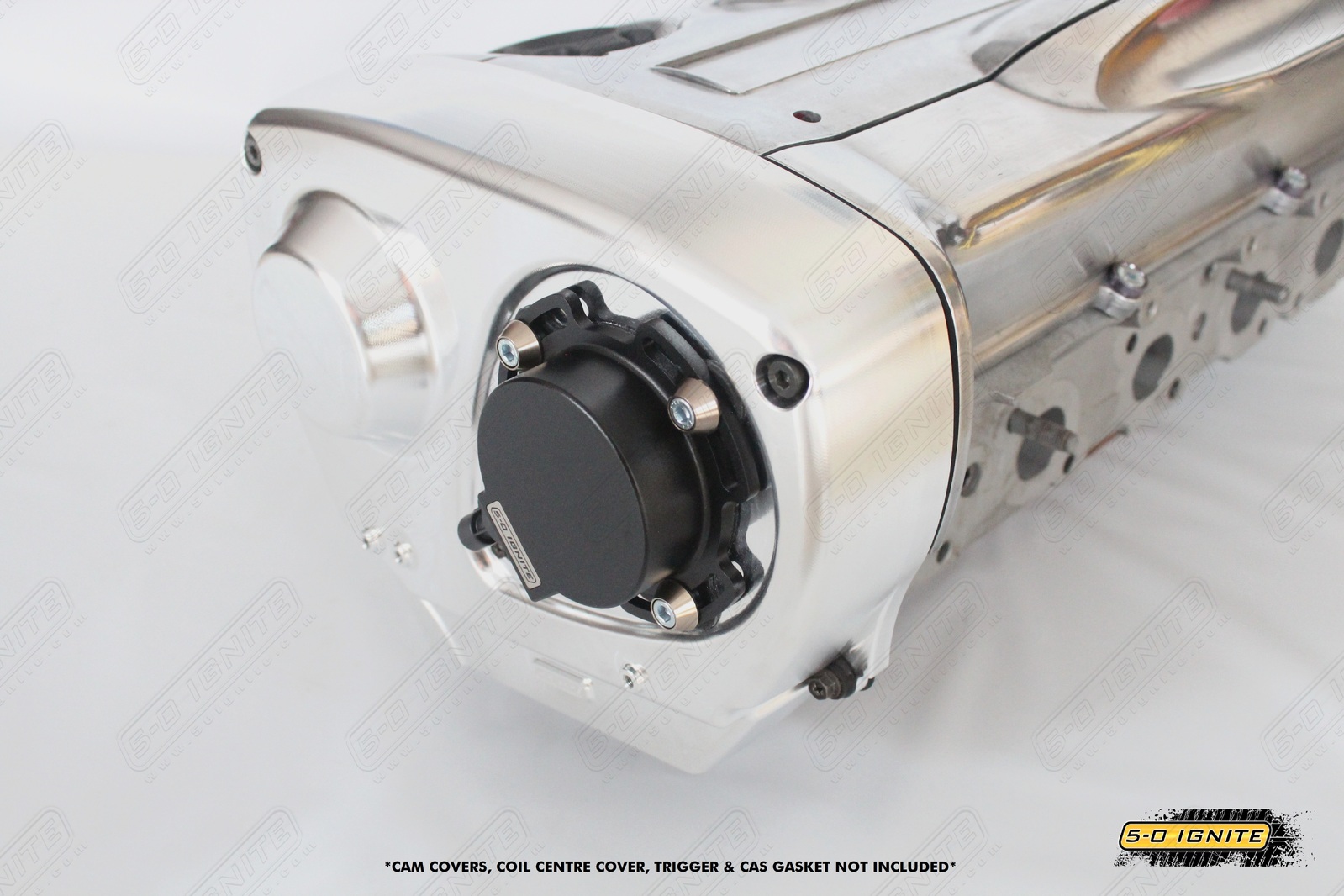

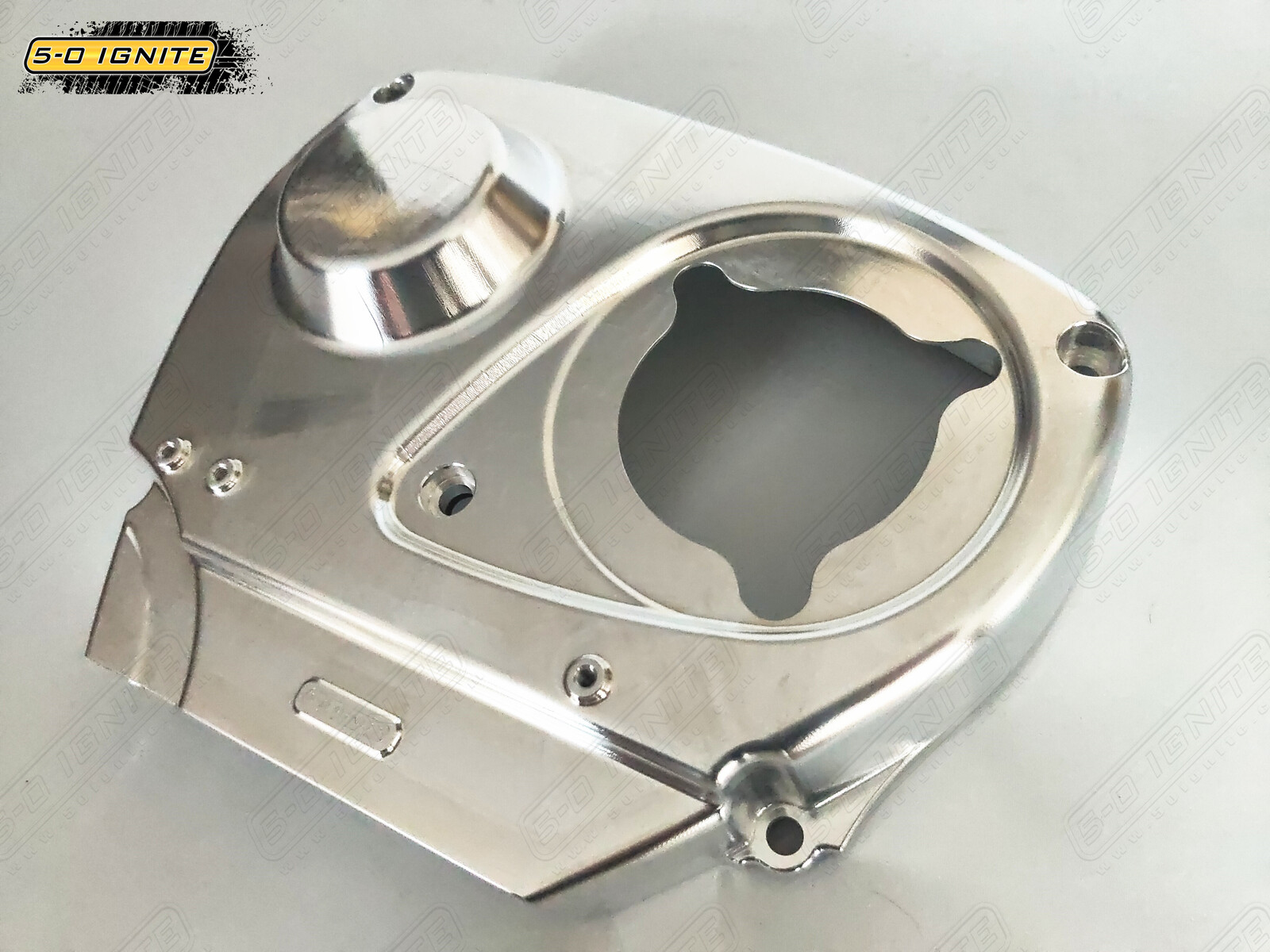

VCT buldge on the intake side to clear the RB25 VCT intake cam gear.

Extra clearance on the bottom opening for RB30DET conversions (clearance to the relocated tensioner and clearance to the timing belt).

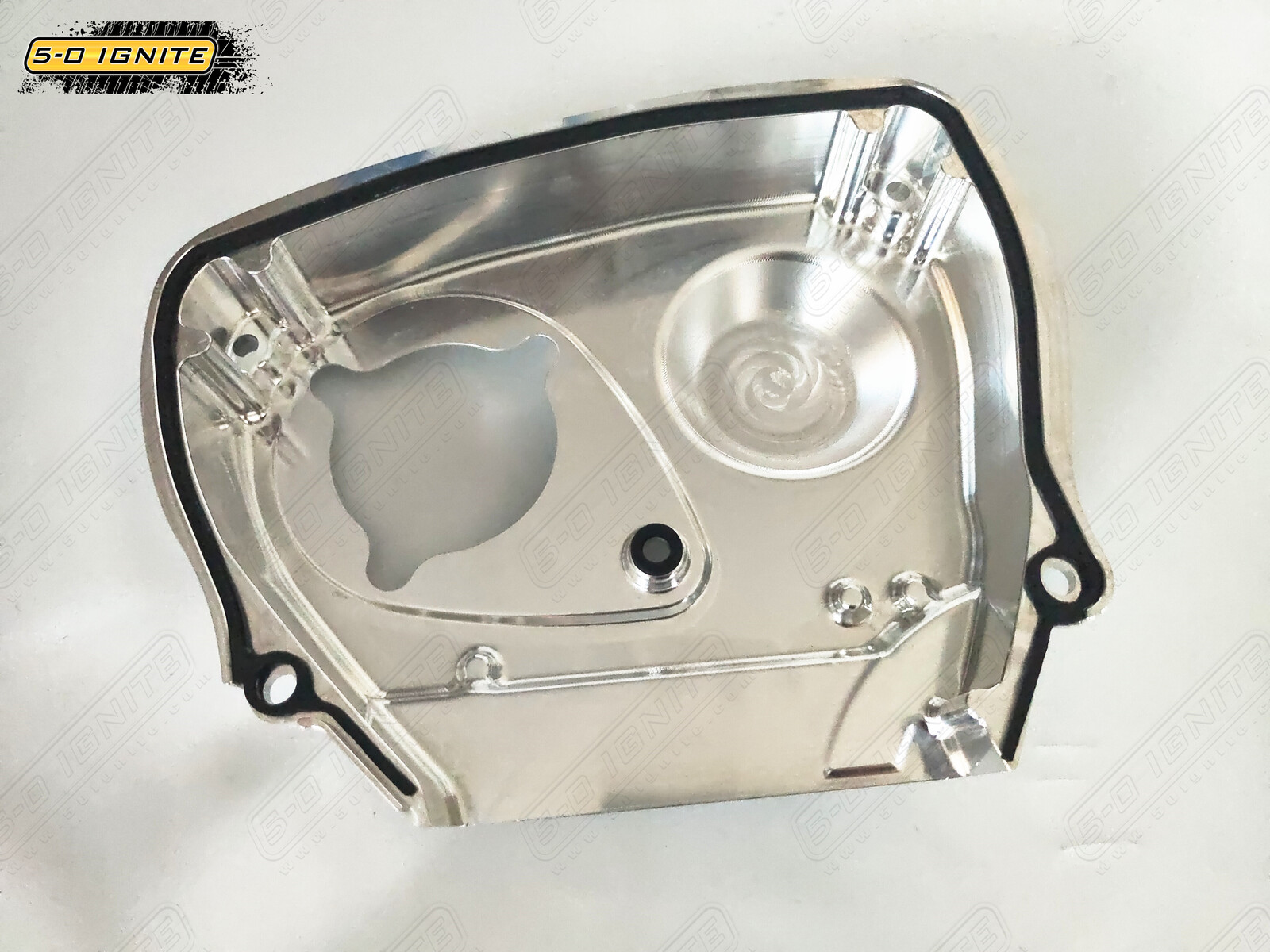

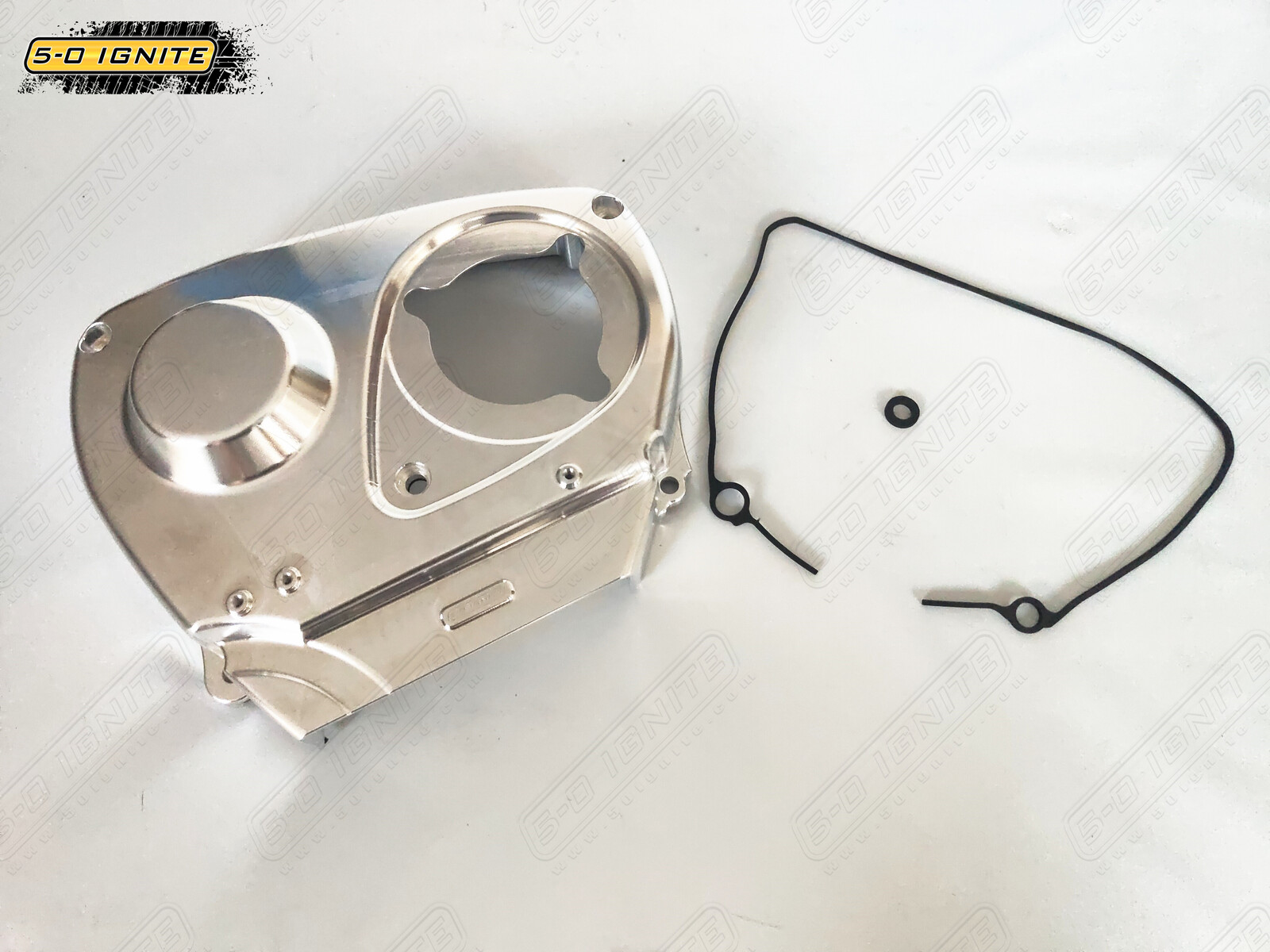

Comes with the necessary rubber gasket and 1:1 marking template to trim the corners of your RB25 timing backing plate.

Comes as 'machined' finish ready for you to sand and paint.



Brand 5-0 Ignite
Shipping Weight 1.9000kg
Shipping Width 0.330m
Shipping Height 0.130m
Shipping Length 0.260m
Shipping Cubic 0.011154000m3
