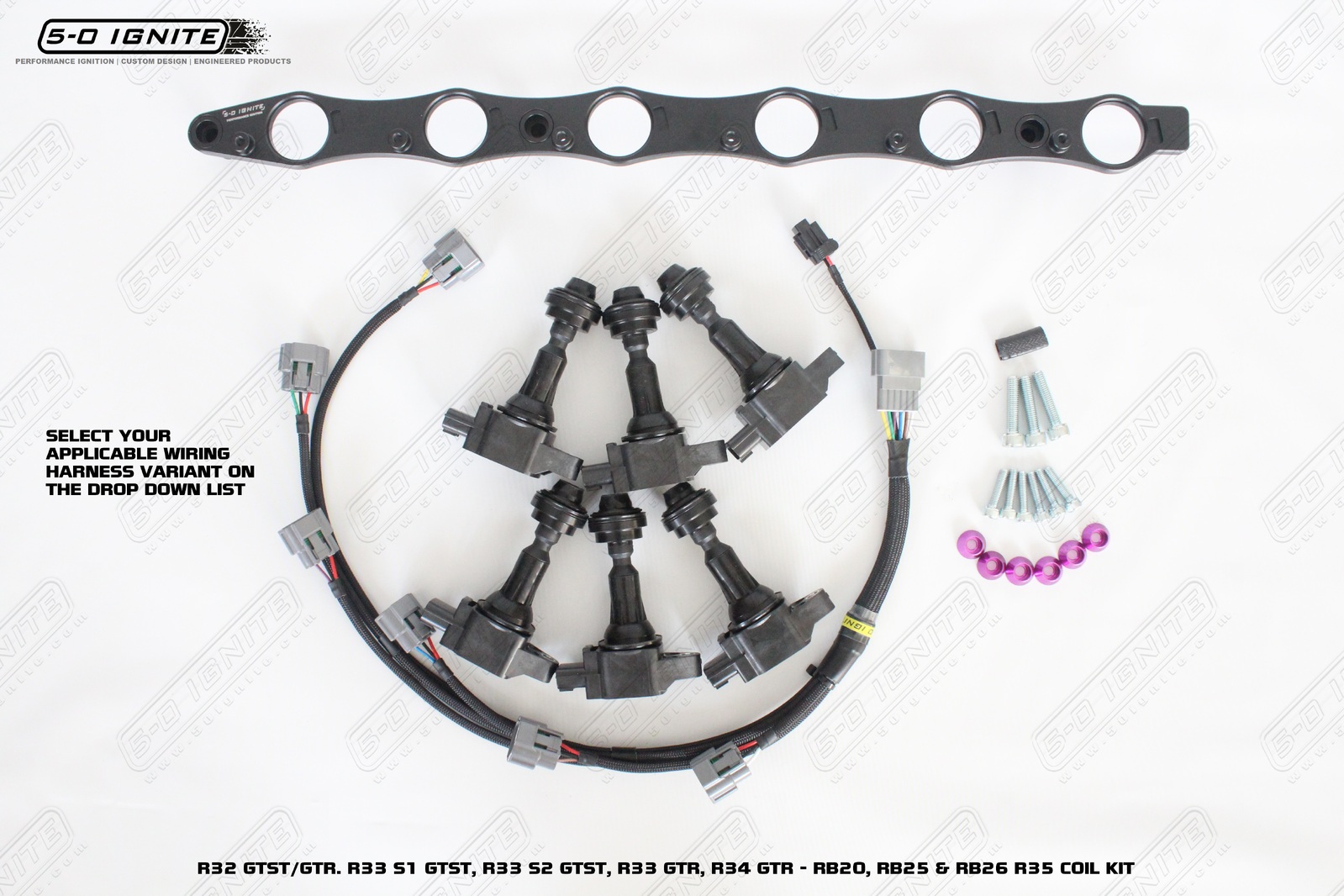

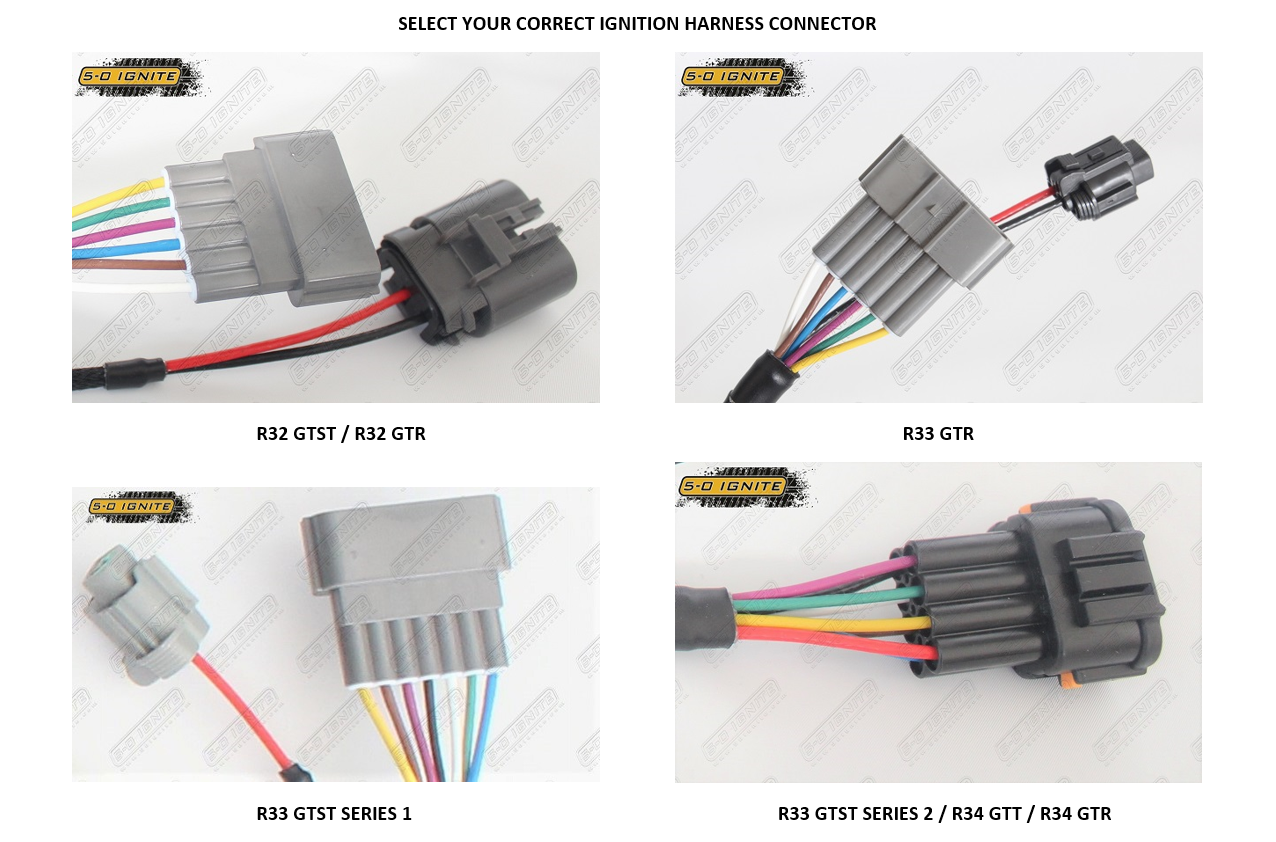

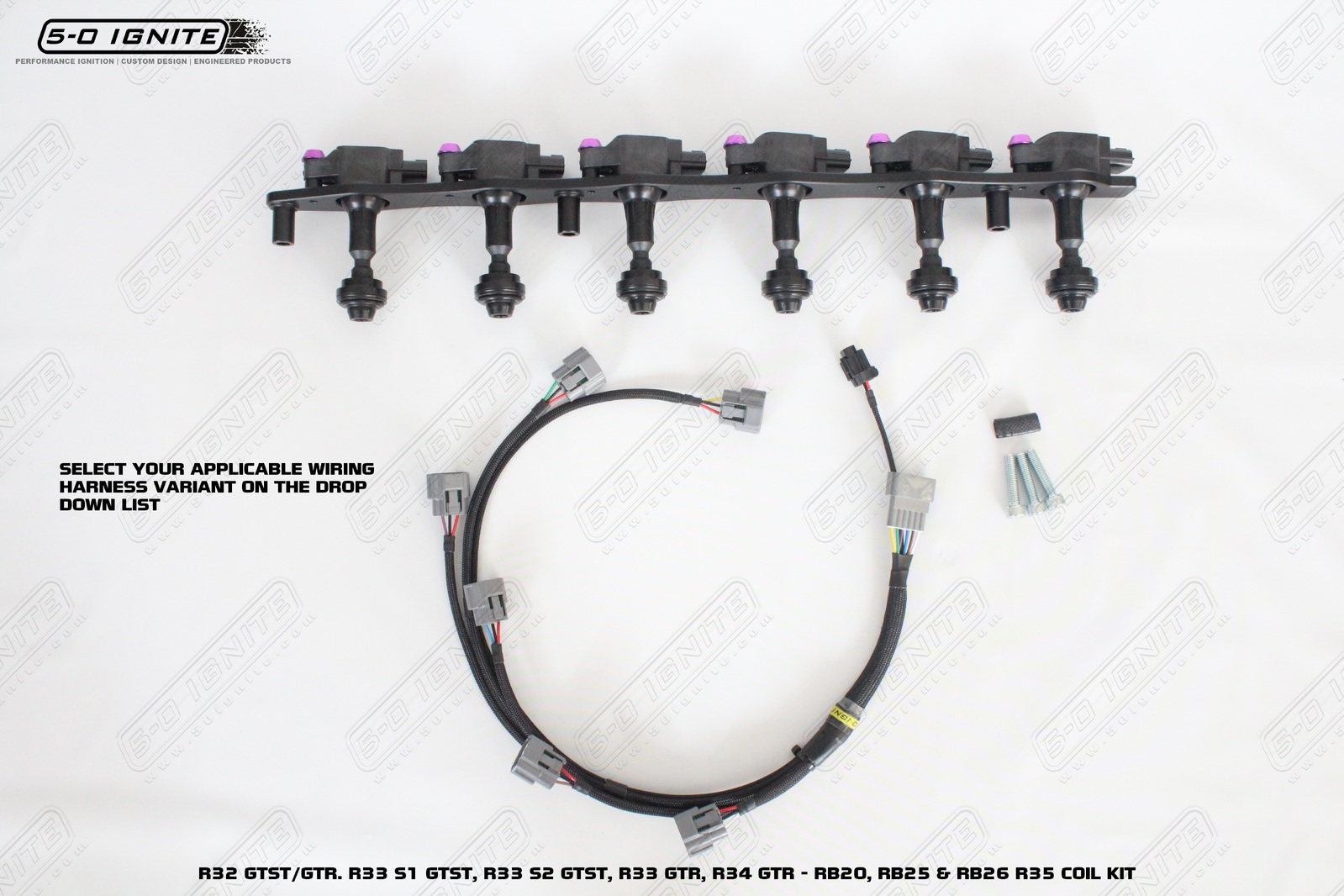

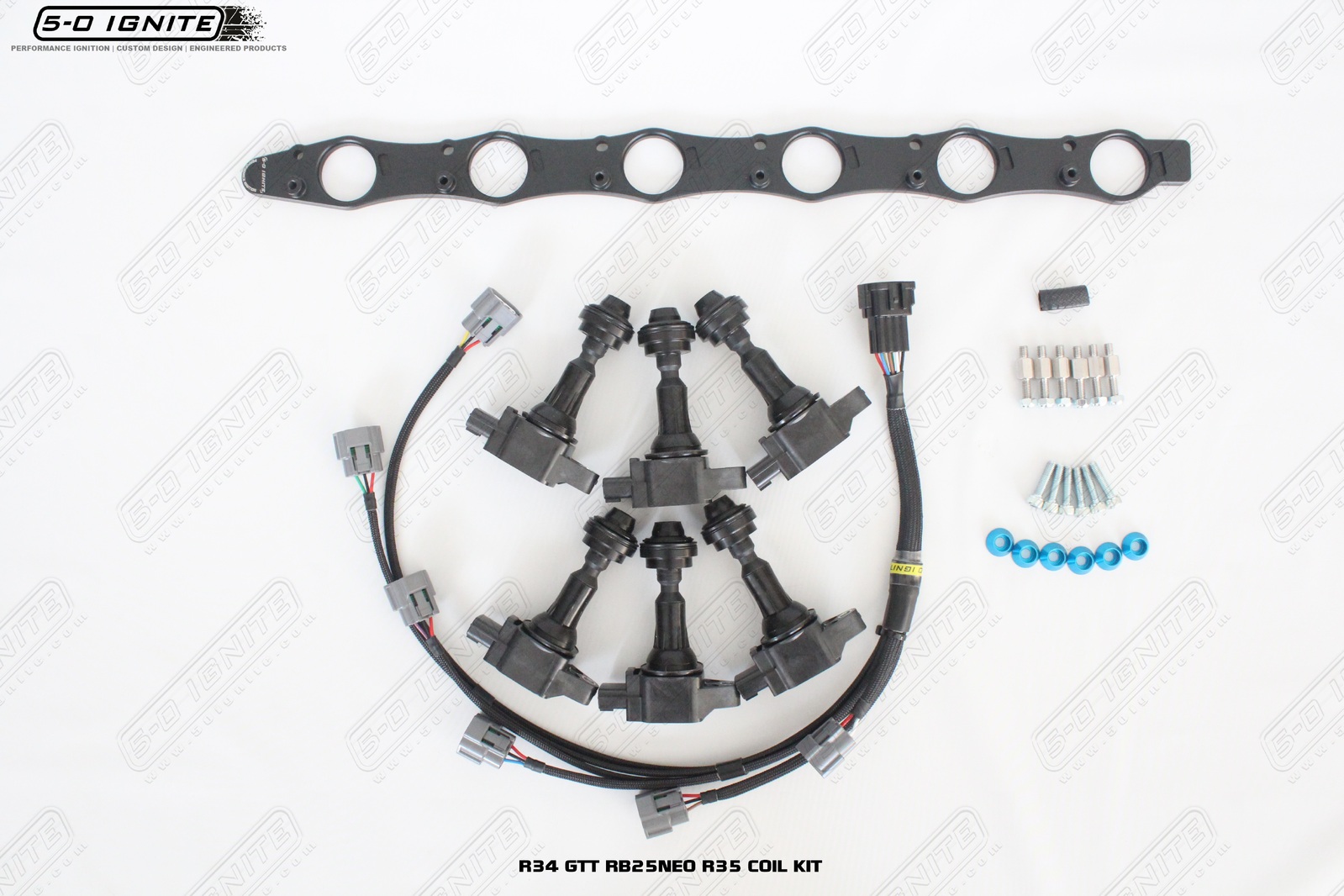

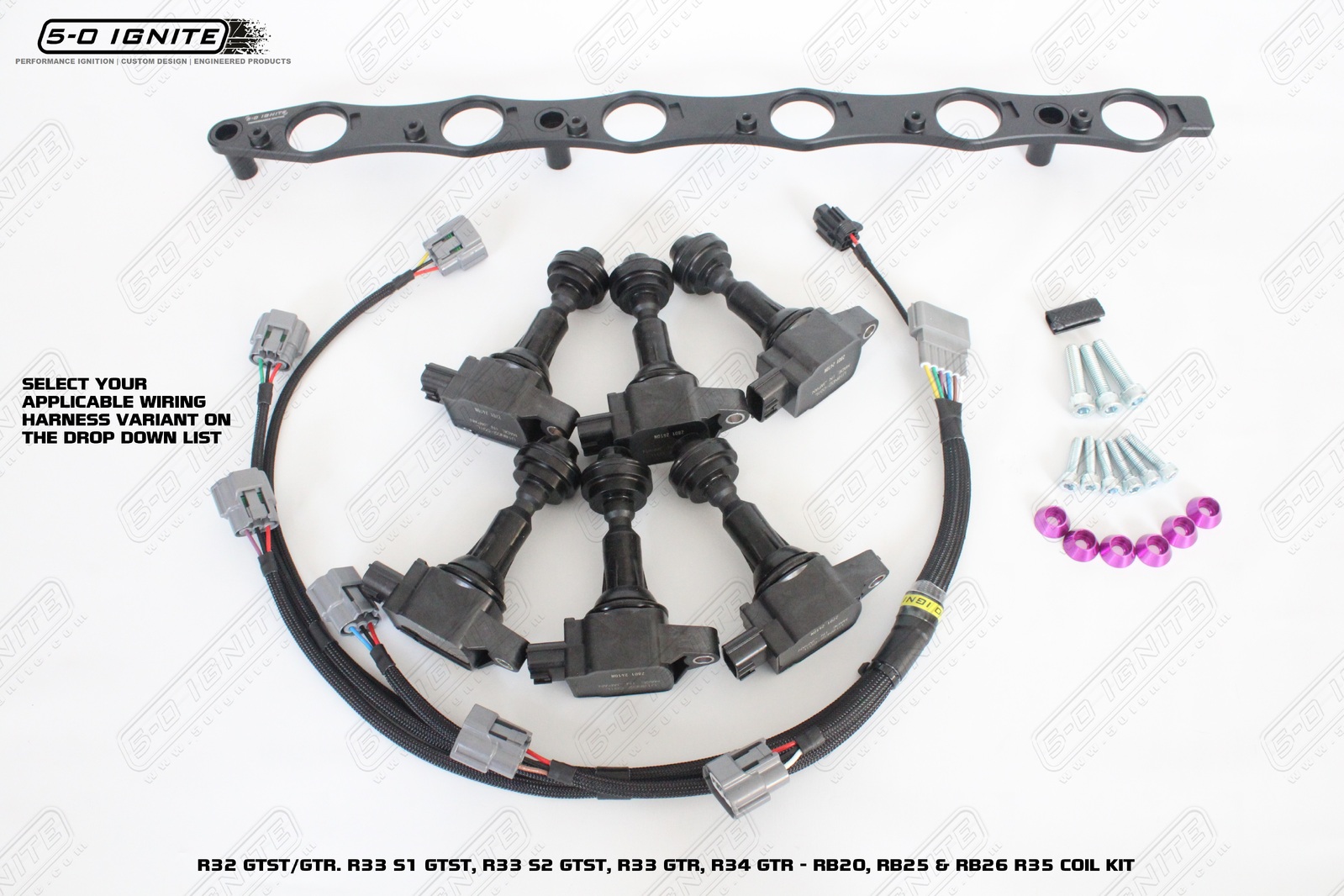

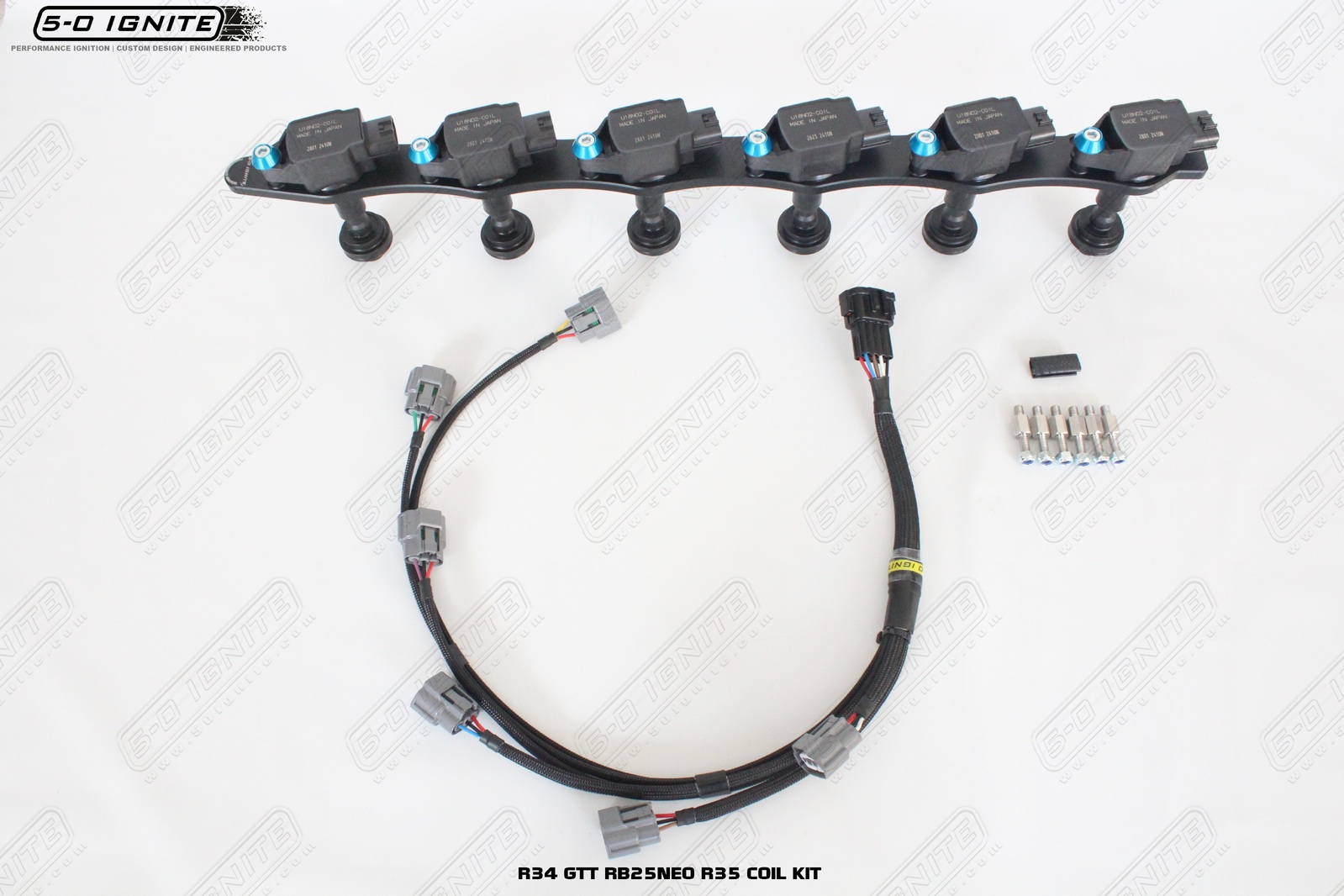

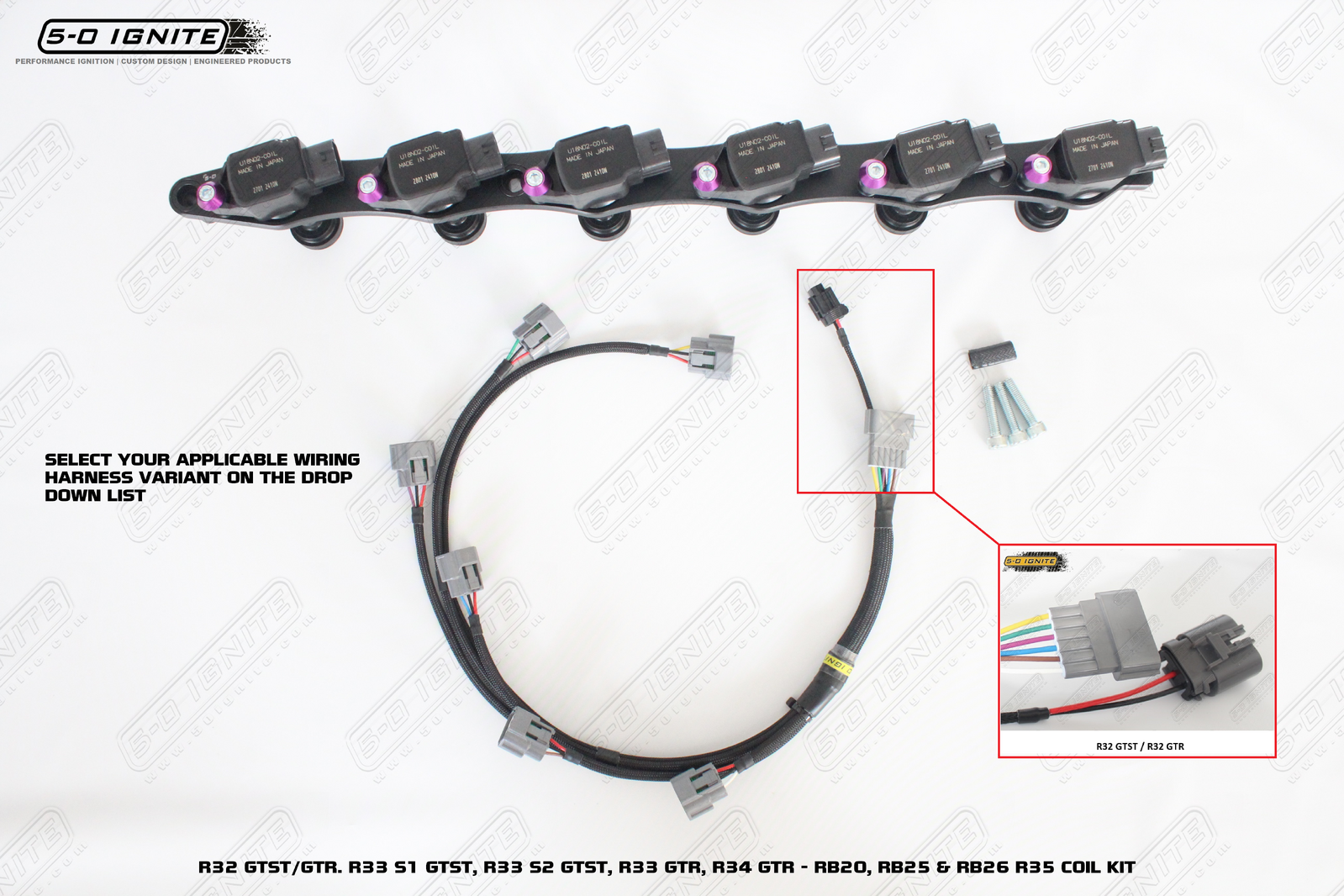

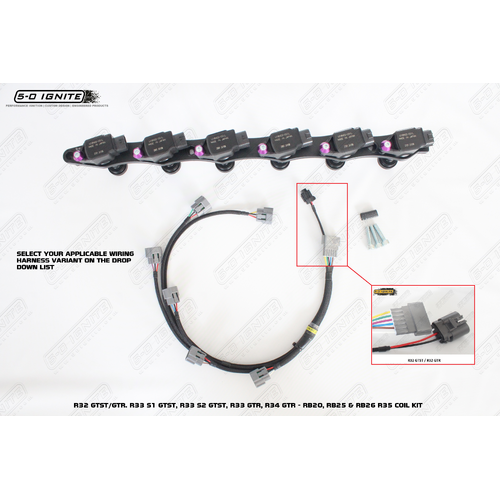

VR38 R35 Ignition Coil Kit To Suit Nissan RB - RB20 RB25 RB26 (select your model from the drop down list).

This is the ultimate 'go-to' plug and play coil upgrade kit on the market. Don't be fooled with other cheaper kits on the market that does not fit under the valley cover, does not seal the spark plug bore, utilizes the incorrect stalk or, worse, counterfeit coils.

What differentiates us from other competitors;

True Bolt On - 100% Plug and Play for effortless installation.

Genuine Hitachi VR38 R35 GTR coil packs.

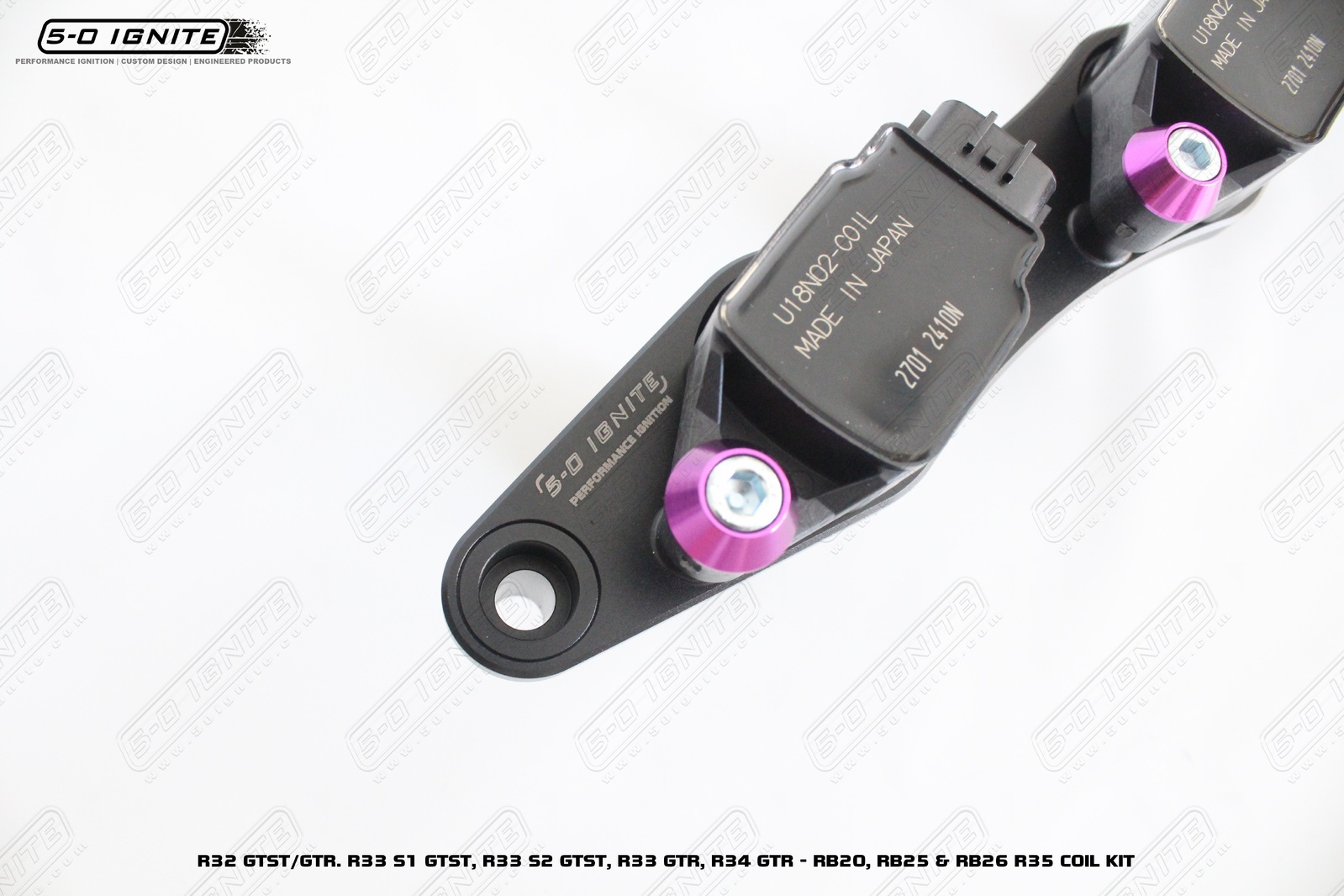

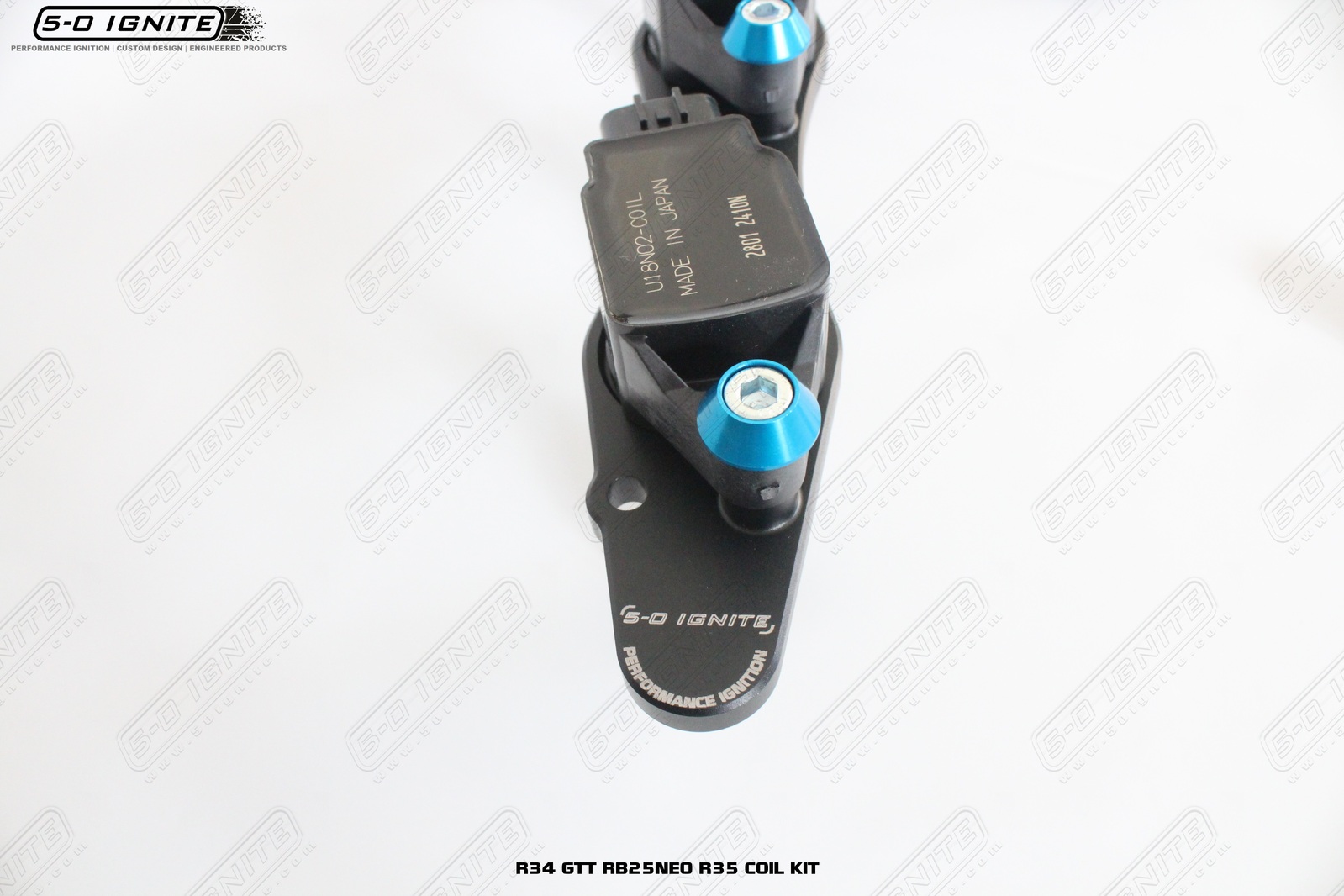

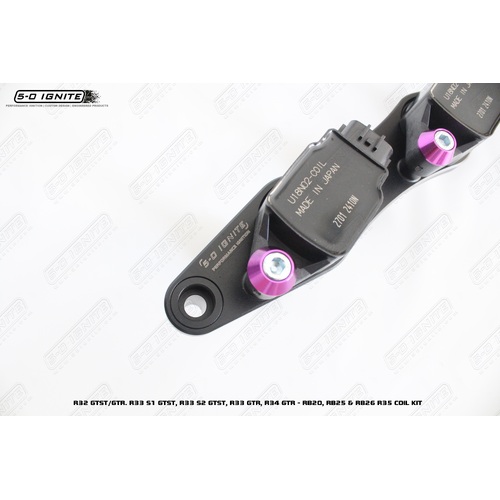

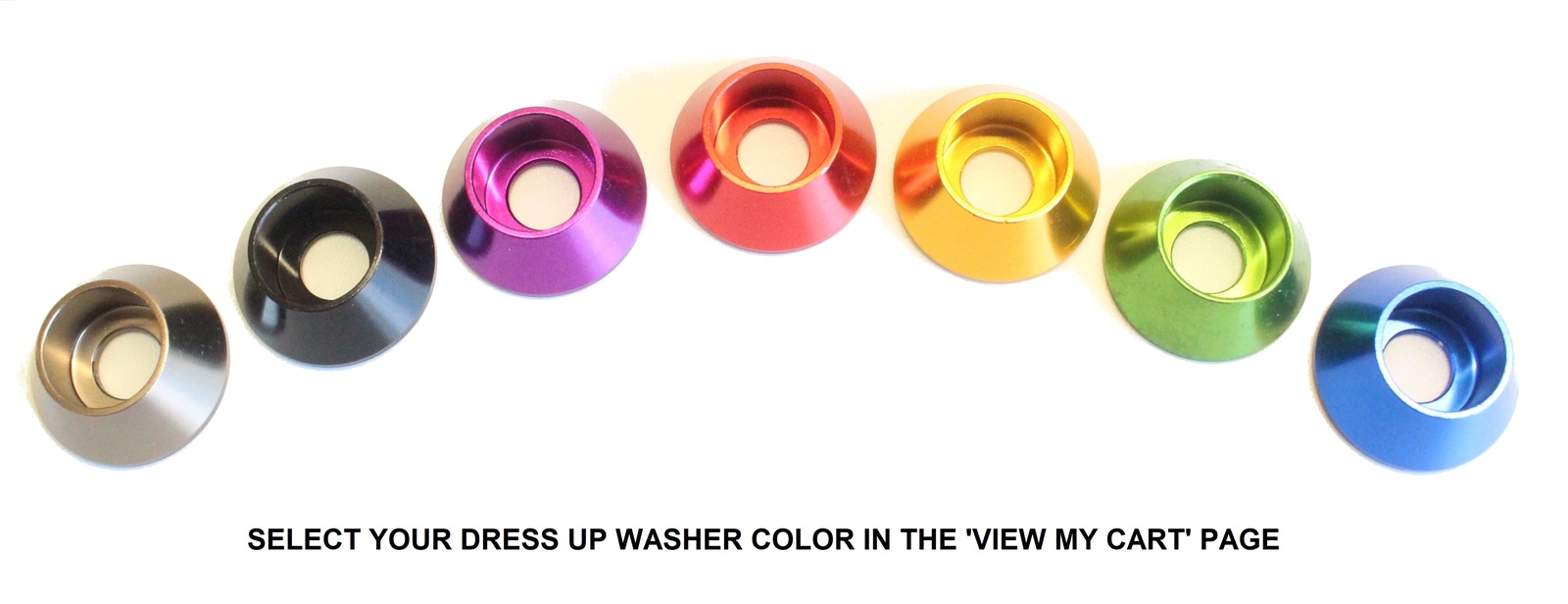

Billet aluminium 6061 mounting bracket, hard anodised black with a choice of dress up washer color.

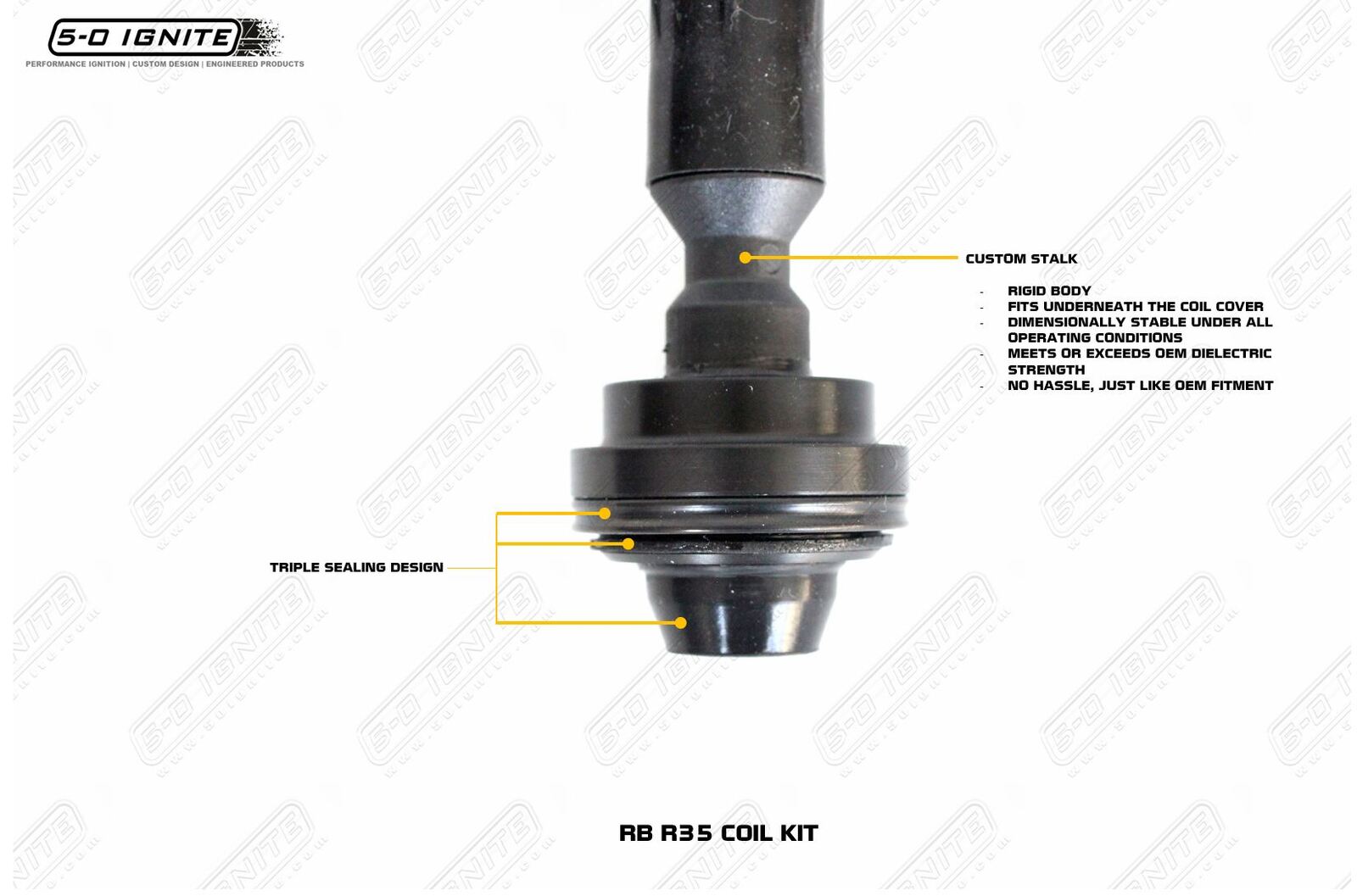

Custom triple sealing coil stalk lower to stop moisture/debris getting into the spark plug bore with the right inner diameter to fit BCPR or BKR spark plugs (original VR38 R35 uses smaller spark plug stem diameter which requires excessive force to jam the coil onto the larger spark plug stem diameter found on BCPR or BKR spark plug which often cracks the plastic).

Rigid coil stalk mids that meets or exceeds OEM standard for dielectric strength and dimensionally stable at all operating temperature retaining the spring and resistor within.

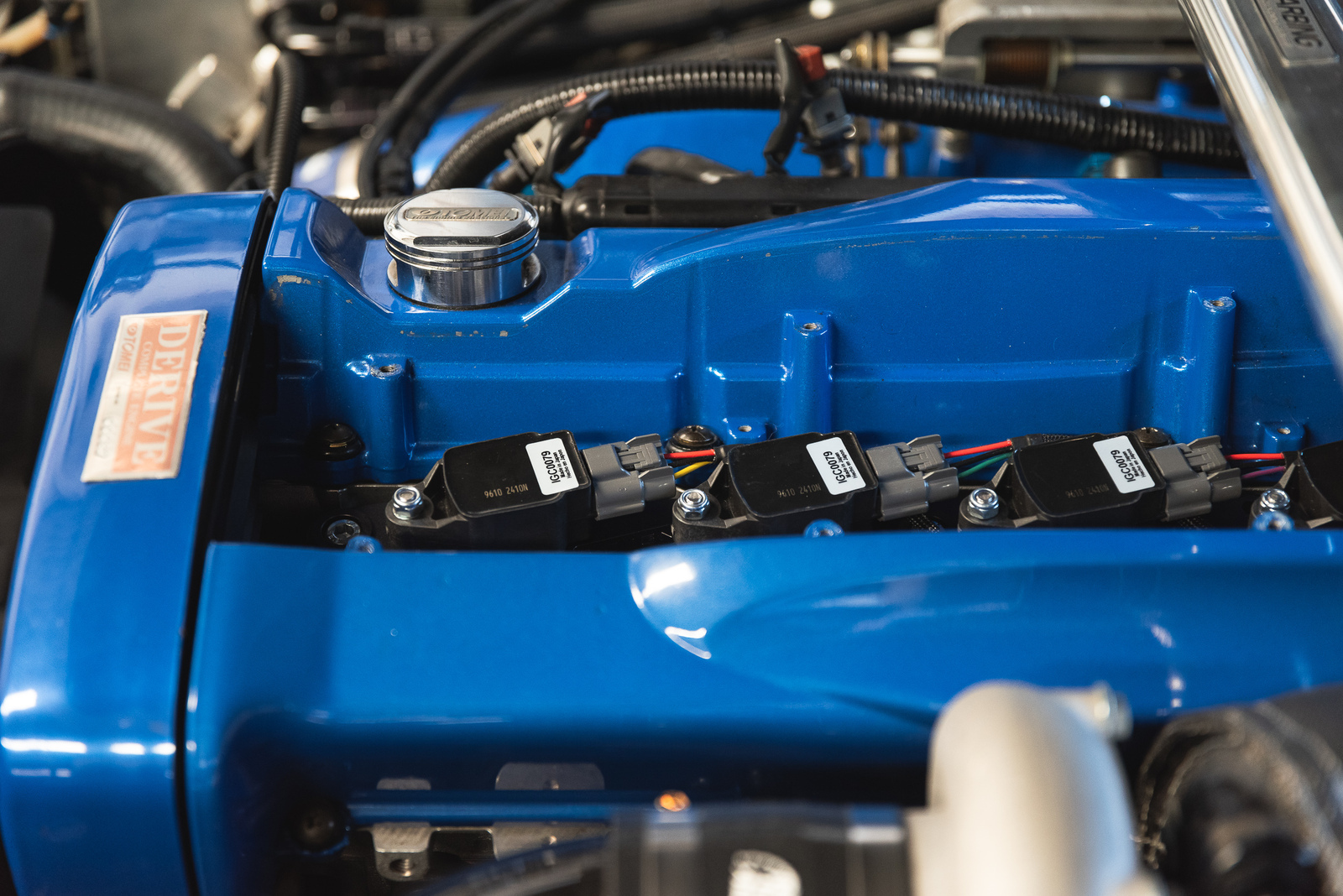

Fits under the spark plug valley cover.

Coil kit and its mounting system sits low in the valley allowing ample clearance for HKS VCAM system.

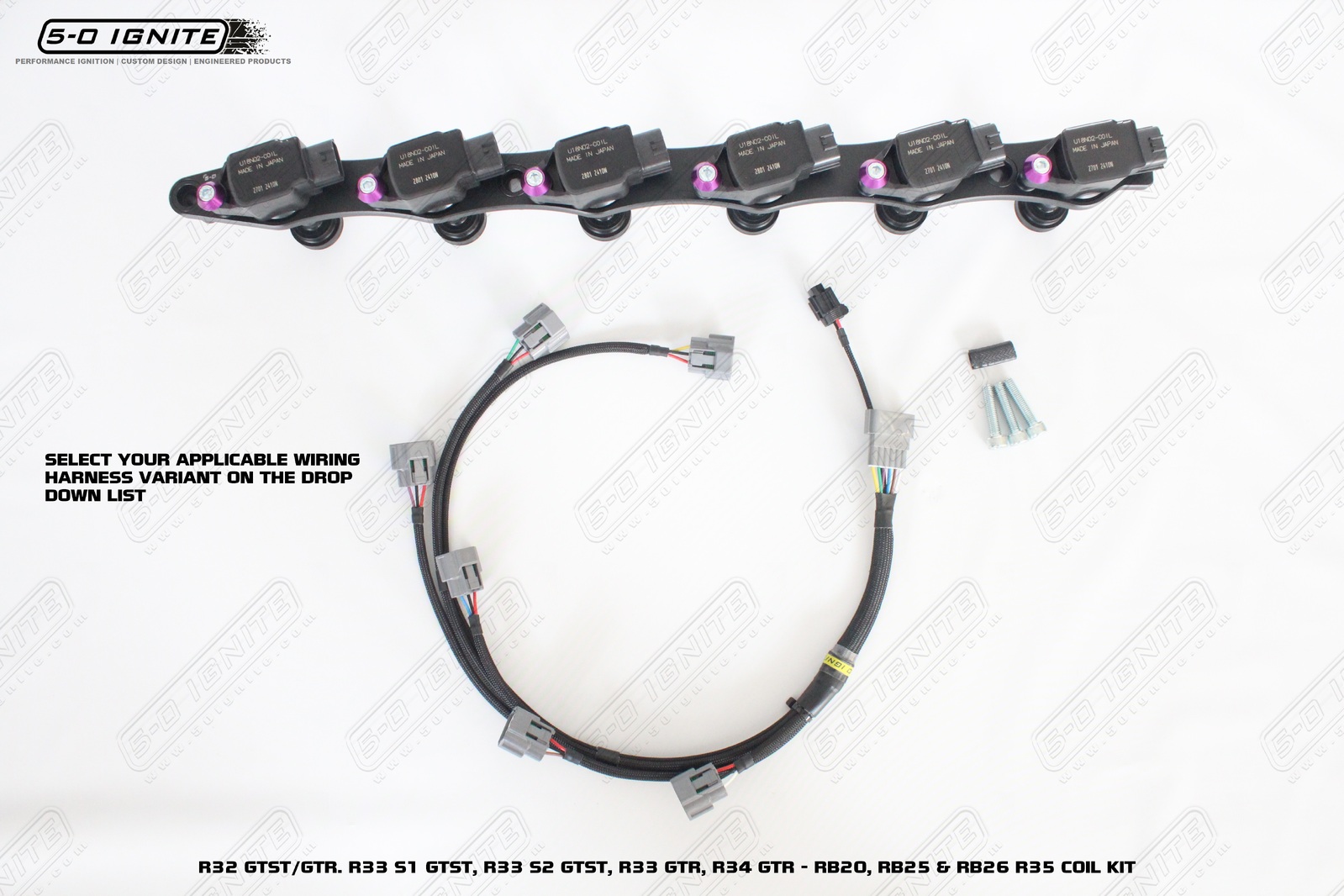

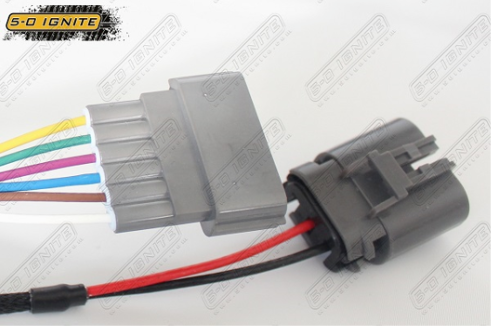

Heavy gauge, high temperature and chemical resistant Teflon F.E.P wiring harness constructed with nylon sleeving and dual wall heat shrink.

Genuine connectors.

Professionally crimped terminals.



(Note: RB25 NEO head have different coil bolting points, please verify your coil mounting on your cylinder head before purchasing)



!  Known supported ECUs: Almost all modern aftermarket ECUs that allows you to configure ignition dwell time.

!  Check up tune on your vehicle is highly recommended. Depending how old/weak your previous coils are, our testing shows an advancement of the ignition base timing by installing these powerful coils.

!  Designed to be used with the recommended spark plugs by Nissan i.e. NGK BCPR series.

!  Minor trimming of the valley cover plastic rear section is required on RB20 and RB25 (refer to 'figure 10' in instruction guide).

!  To maximise its performance, the ignition dwell time table for the R35 GTR coil is provided under the 'installation guide' tab

!  We do NOT sell individual components separately due to the custom components and fitment.

!  We may combine two ignition coils into one box to save on international shipping (reduced volumetric weight)

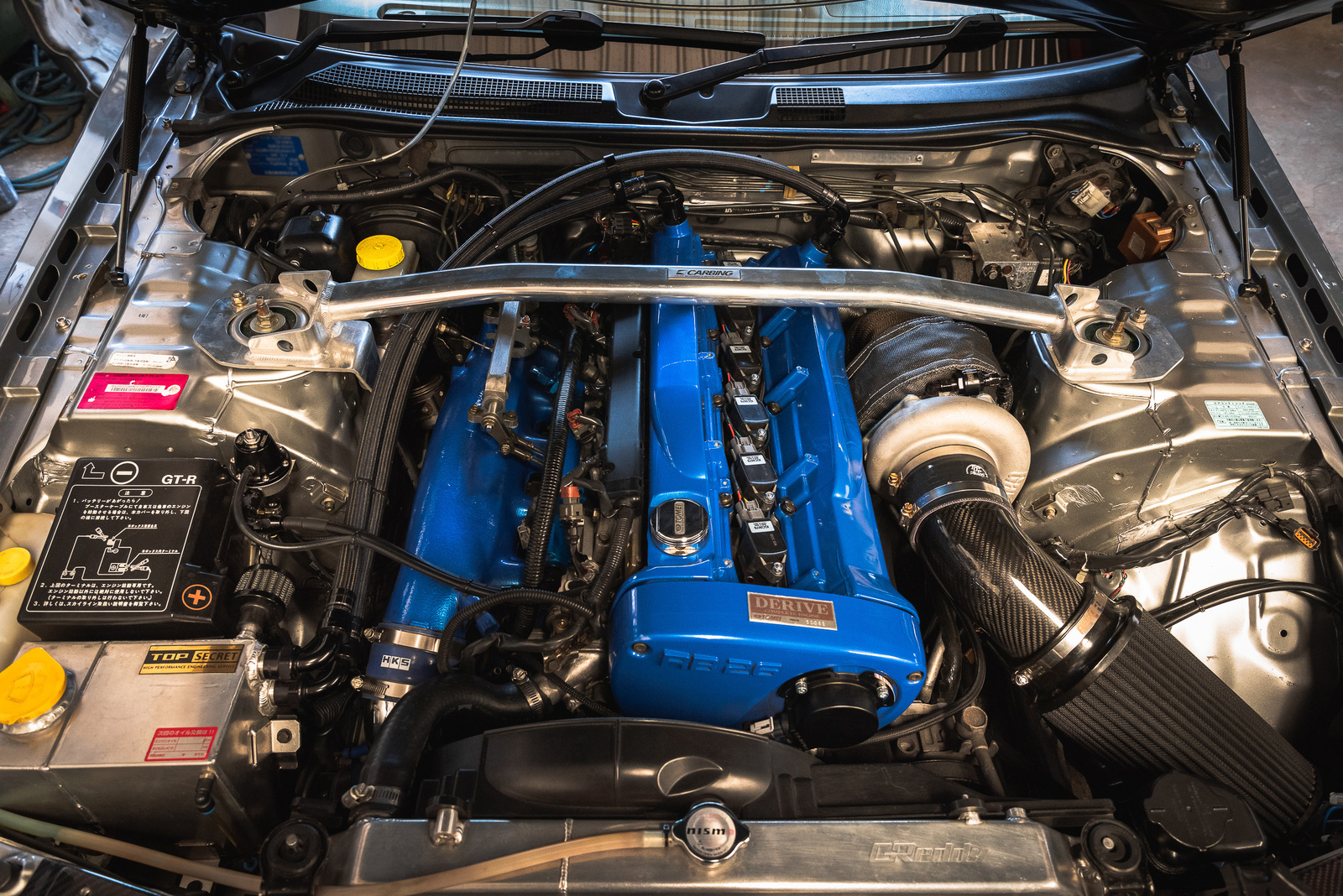

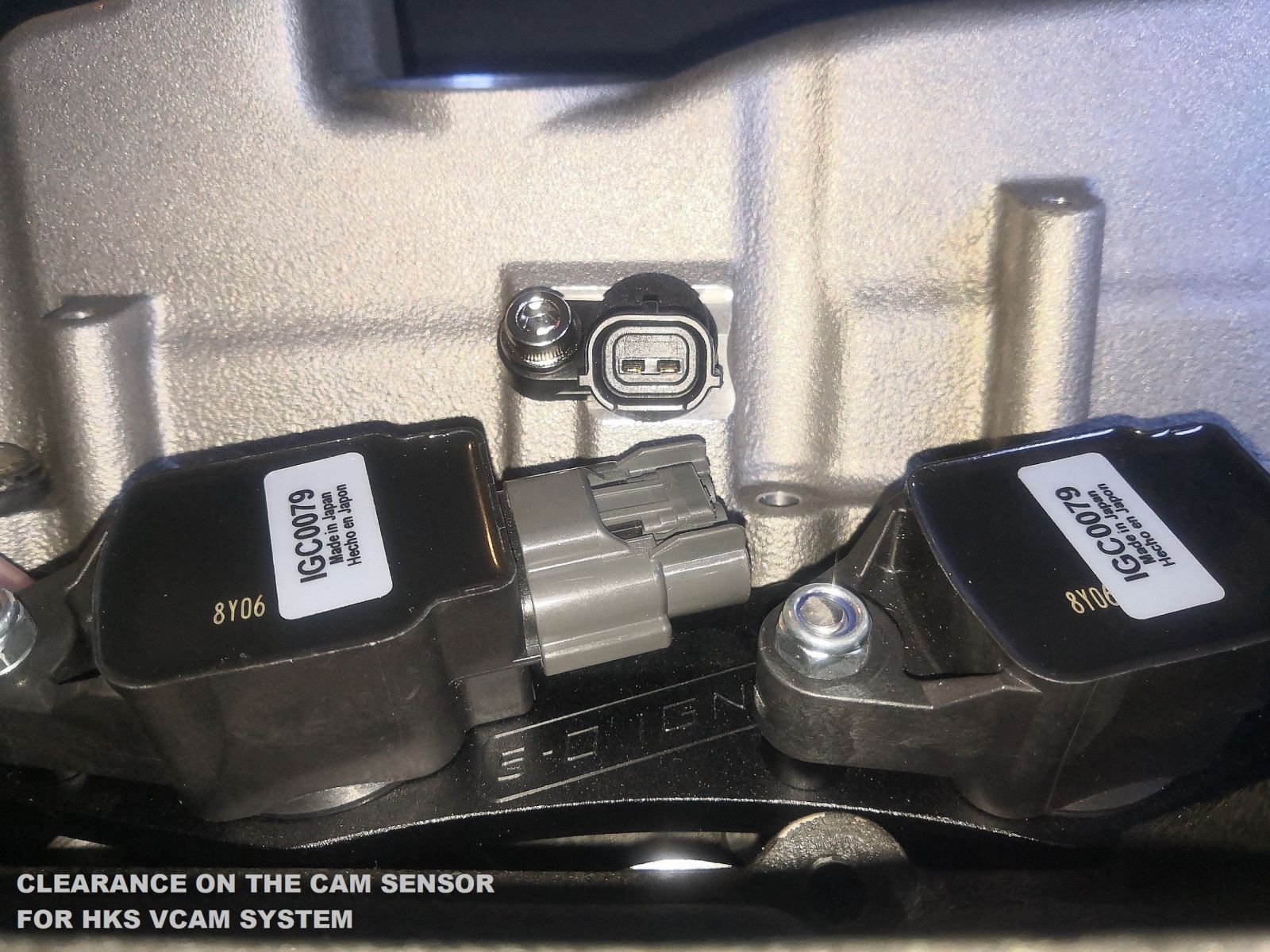

Fitment on HKS VCAM;



Shipping is available worldwide, trackable and insured.

Please note that we do not sell and recommend the use of counterfeit coil packs. Counterfeit products harm the automotive industry and are a hazard to your engine/safety. Be cautious when a seller uses words like “-style” or “-equivalent” to pass on cheap counterfeit products that will not perform.

We do not incorporate a wire loop in our harnesses for use with an inductive timing light as our experience proves it to be an unreliable source. To set ignition base timing, we recommend the use of coil on plug extension lead (such as DAT-Equipment TE010 or the like) to latch your inductive clamp onto for a much more reliable reading.



R35 GTR Coil Corresponding Part Numbers

Nissan: 22448-JF00B (Hanshin, Hitachi Automotive)

Hitachi: IGC0079, HEX EXA-2410N, U18N02-COIL

Verification From Hitachi:

http://www.hitachi-autoparts.co.jp/products/pdf/ignition_coil_190717.pdf

http://www.hitachi-automotive.co.jp/en/products/aftpro/parts_search/pnc.html?la=0



Our RB Coil Kit Range:

R32 RB20 & RB26 R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r32-gtr-gtst

R33 GTST S1 RB25 S1 R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r33-gtst-series-1

R33 GTST S2 RB25 S2 R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r33-gtst-series-2

R34 GTT RB25 NEO R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r34-gtt-neo-audi-r8-ignition-kit

R33 GTR RB26 R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r33-gtr

R34 GTR RB26 R8 Coil Kit: https://www.50ignite.com/nissan-skyline-r33-gtr



RB Crank Trigger for ULTIMATE Ignition Accuracy: https://www.50ignite.com/nissan-rb-twin-cam-24-1-crank-trigger-kit



R32 R33 R34 RB30 RB20 RB25 RB26 Coil Kit | VR38 R35 Coil Kit | RB Coil Upgrade | RB Coil Kit | GTR GTST

(50IGNRBR35)

SKU 50IGNRBR35
Brand 5-0 Ignite
Shipping Weight 3.0000kg
Shipping Width 0.620m
Shipping Height 0.100m
Shipping Length 0.180m
Shipping Cubic 0.011160000m3
Unit Of Measure ea
